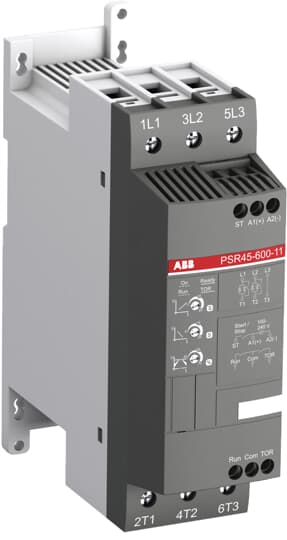

1SFA896111R1100 ABB
ABB 1SFA896111R1100 ABB
€247,95
Only 9 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
153 mm
Product Net Height:
187 mm
Product Net Depth / Length:
54 mm
Product Net Weight:
1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 11 kW
(400 V) 22 kW
(500 V) 30 kW
(230 V) 11 kW
(400 V) 22 kW
(500 V) 30 kW
Rated Operational Current - In-Line Connection (Ie):
45 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS450 36 ... 45
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 35 mm²
Rigid 2 x 6 ... 16 mm²
Rigid 1x 6 ... 35 mm²
Rigid 2 x 6 ... 16 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR45
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 15 Hp
(220 ... 240 V AC) Three Phase 15 Hp
(440 ... 480 V AC) Three Phase 30 Hp
(550 ... 600 V AC) Three Phase 40 Hp
(200 ... 208 V AC) Three Phase 15 Hp
(220 ... 240 V AC) Three Phase 15 Hp
(440 ... 480 V AC) Three Phase 30 Hp
(550 ... 600 V AC) Three Phase 40 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
163 mm
Package Level 1 Depth / Length:
56 mm
Package Level 1 Height:
217 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
7320500477229
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter

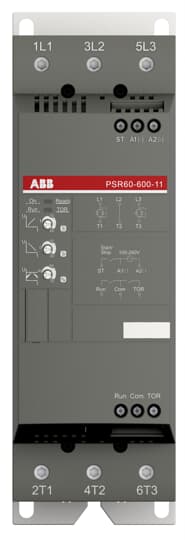

1SFA896112R1100 ABB - PSR60-600-11
ABB 1SFA896112R1100 ABB - PSR60-600-11
€311,95
Only 6 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
180 mm
Product Net Height:
220 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 15 kW
(400 V) 30 kW
(500 V) 37 kW
(230 V) 15 kW
(400 V) 30 kW
(500 V) 37 kW
Rated Operational Current - In-Line Connection (Ie):
60 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS495 45 ... 63
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR60
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 50 Hp
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 50 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
195 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
230 mm
Package Level 1 Gross Weight:
2.3 kg
Package Level 1 EAN:
7320500477236
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SFA896113R1100 ABB - PSR72-600-11
ABB 1SFA896113R1100 ABB - PSR72-600-11
€380,95
Only 10 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
180 mm
Product Net Height:
220 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 22 kW
(400 V) 37 kW
(500 V) 45 kW
(230 V) 22 kW
(400 V) 37 kW
(500 V) 45 kW
Rated Operational Current - In-Line Connection (Ie):
72 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS495 57 ... 75
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR72
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 25 Hp
(440 ... 480 V AC) Three Phase 50 Hp
(550 ... 600 V AC) Three Phase 60 Hp
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 25 Hp
(440 ... 480 V AC) Three Phase 50 Hp
(550 ... 600 V AC) Three Phase 60 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
195 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
230 mm
Package Level 1 Gross Weight:
2.3 kg
Package Level 1 EAN:
7320500477243
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SFA896114R1100 ABB - PSR85-600-11
ABB 1SFA896114R1100 ABB - PSR85-600-11
€450,95
Only 6 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
180 mm
Product Net Height:
220 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 22 kW
(400 V) 45 kW
(500 V) 55 kW
(230 V) 22 kW
(400 V) 45 kW
(500 V) 55 kW
Rated Operational Current - In-Line Connection (Ie):
85 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS495 70 ... 90
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR85
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 25 Hp
(220 ... 240 V AC) Three Phase 30 Hp
(440 ... 480 V AC) Three Phase 60 Hp
(550 ... 600 V AC) Three Phase 75 Hp
(200 ... 208 V AC) Three Phase 25 Hp
(220 ... 240 V AC) Three Phase 30 Hp
(440 ... 480 V AC) Three Phase 60 Hp
(550 ... 600 V AC) Three Phase 75 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
195 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
230 mm
Package Level 1 Gross Weight:
2.3 kg
Package Level 1 EAN:
7320500477250
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter

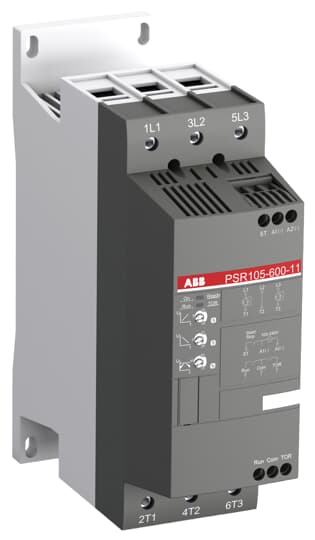

1SFA896115R1100 ABB
ABB 1SFA896115R1100 ABB
€536,95
Only 6 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
180 mm
Product Net Height:
220 mm
Product Net Depth / Length:
70 mm
Product Net Weight:
2.1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
24 V AC/DC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 30 kW
(400 V) 55 kW
(500 V) 55 kW
(230 V) 30 kW
(400 V) 55 kW
(500 V) 55 kW
Rated Operational Current - In-Line Connection (Ie):
105 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS495 80 ... 100
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Main Circuit: Bars
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Rigid 1x 6 ... 95 mm²
Rigid 2 x 6 ... 35 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1/2 x 0.75 ... 2.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 8 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR105
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 30 Hp
(220 ... 240 V AC) Three Phase 40 Hp
(440 ... 480 V AC) Three Phase 75 Hp
(550 ... 600 V AC) Three Phase 100 Hp
(200 ... 208 V AC) Three Phase 30 Hp
(220 ... 240 V AC) Three Phase 40 Hp
(440 ... 480 V AC) Three Phase 75 Hp
(550 ... 600 V AC) Three Phase 100 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 70.8
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
1caf577d-084a-43ed-a6ea-ef420754c09b China
Simplified SCIP:
d2b5998d-e346-4f05-964d-2780655f6d37 Hungary
8b445308-2648-47f1-a41a-593564e786e9 Greece
b83b72bd-46a5-4e43-8e78-42c2b9189b4e Germany
dfda15a8-dd91-4e50-8aee-30b6c83359b9 Germany
cca2898a-4dfd-4f15-90bd-95270e095388 Estonia
e627d7d7-bf25-4182-9fc1-a233432ce1c3 Germany
ca1bf596-def7-485d-93aa-5ce14161d5d6 Bulgaria
17e973dc-7870-46c5-a7e7-ef5f34730393 Poland
d2ee20e3-d9a1-49d4-b50c-ab270b4633c0 Netherlands
a170a5a3-12cc-4b95-90b3-8039640d81b9 Germany
276c5ed1-b47c-4b11-a7de-758b126406ce Germany
6316367b-0e87-4022-97c0-bb1b38236b6e Denmark
cc881b33-6bef-4421-b675-346654246e4e Poland
86228e4d-5940-4439-a735-a2af311ecd58 Portugal
f0d51129-e59b-4974-a411-7d241913fc46 France
bb8d235c-9e5b-4861-b31e-f60b685801dc Belgium
c758432a-acda-443f-bf65-b09c1ddd57f5 Norway
9efdb42b-c1fe-4671-af53-15557daeb42b Finland
e5f18c1f-acfd-4148-888a-6b068706089f Sweden
9682c877-ec29-4bdf-8354-056792b9c9c8 Poland
0584f014-7b5d-4d83-af8c-47f39eac3390 France
54faef34-4bb9-42c2-b843-1d3ba1df2c31 Sweden
a5ccf6bc-f1a2-417e-a9f7-4e523b20f42b Hungary
501c1aa6-d749-4002-9e54-1ebf614fa8f9 Spain
79470bfd-aa43-45f3-a204-fd05858a3cd0 Belgium
76f5a438-4408-4c0d-b2a0-76fa6190c7df Croatia
701e91fa-0ee5-4117-aa1f-62872988c231 Czech Republic
d2b5998d-e346-4f05-964d-2780655f6d37 Hungary
8b445308-2648-47f1-a41a-593564e786e9 Greece
b83b72bd-46a5-4e43-8e78-42c2b9189b4e Germany
dfda15a8-dd91-4e50-8aee-30b6c83359b9 Germany
cca2898a-4dfd-4f15-90bd-95270e095388 Estonia
e627d7d7-bf25-4182-9fc1-a233432ce1c3 Germany
ca1bf596-def7-485d-93aa-5ce14161d5d6 Bulgaria
17e973dc-7870-46c5-a7e7-ef5f34730393 Poland
d2ee20e3-d9a1-49d4-b50c-ab270b4633c0 Netherlands
a170a5a3-12cc-4b95-90b3-8039640d81b9 Germany
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
195 mm
Package Level 1 Depth / Length:
86 mm
Package Level 1 Height:
230 mm
Package Level 1 Gross Weight:
2.3 kg
Package Level 1 EAN:
7320500477267
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter

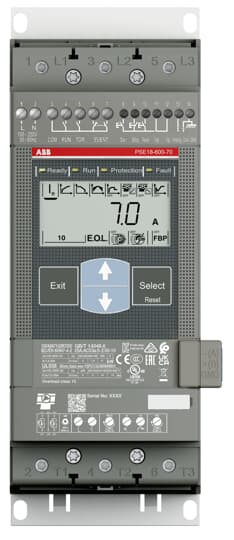

1SFA897101R7000 ABB - PSE18-600-70
ABB 1SFA897101R7000 ABB - PSE18-600-70
€387,95
Only 9 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
90 mm
Product Net Height:
245 mm
Product Net Depth / Length:
184 mm
Product Net Weight:
2.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 4 kW
(400 V) 7.5 kW
(500 V) 11 kW
(230 V) 4 kW
(400 V) 7.5 kW
(500 V) 11 kW
Rated Operational Current - In-Line Connection (Ie):
18 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE18
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 5 Hp
(220 ... 240 V AC) Three Phase 5 Hp
(440 ... 480 V AC) Three Phase 10 Hp
(550 ... 600 V AC) Three Phase 15 Hp
(200 ... 208 V AC) Three Phase 5 Hp
(220 ... 240 V AC) Three Phase 5 Hp
(440 ... 480 V AC) Three Phase 10 Hp
(550 ... 600 V AC) Three Phase 15 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
257 mm
Package Level 1 Height:
288 mm
Package Level 1 Gross Weight:
3.2 kg
Package Level 1 EAN:
7320500400593
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter

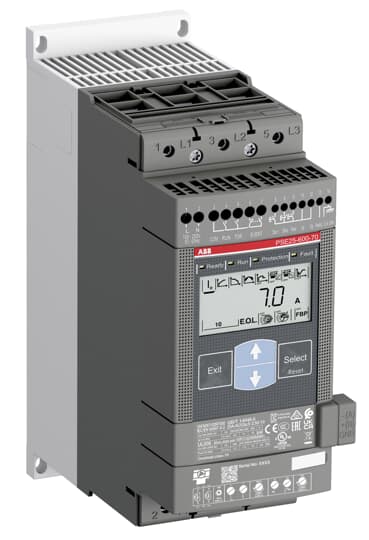

1SFA897102R7000 ABB
ABB 1SFA897102R7000 ABB
€411,95
Only 6 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
90 mm
Product Net Height:
245 mm
Product Net Depth / Length:
184 mm
Product Net Weight:
2.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 5.5 kW
(400 V) 11 kW
(500 V) 15 kW
(230 V) 5.5 kW
(400 V) 11 kW
(500 V) 15 kW
Rated Operational Current - In-Line Connection (Ie):
25 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE25
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 7.5 Hp
(220 ... 240 V AC) Three Phase 7.5 Hp
(440 ... 480 V AC) Three Phase 15 Hp
(550 ... 600 V AC) Three Phase 20 Hp
(200 ... 208 V AC) Three Phase 7.5 Hp
(220 ... 240 V AC) Three Phase 7.5 Hp
(440 ... 480 V AC) Three Phase 15 Hp
(550 ... 600 V AC) Three Phase 20 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
257 mm
Package Level 1 Height:
288 mm
Package Level 1 Gross Weight:
3.2 kg
Package Level 1 EAN:
7320500400609
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SFA897103R7000 ABB
ABB 1SFA897103R7000 ABB
€426,95
Only 7 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
90 mm
Product Net Height:
245 mm
Product Net Depth / Length:
184 mm
Product Net Weight:
2.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 7.5 kW
(400 V) 15 kW
(500 V) 18.5 kW
(230 V) 7.5 kW
(400 V) 15 kW
(500 V) 18.5 kW
Rated Operational Current - In-Line Connection (Ie):
30 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE30
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 7.5 Hp
(220 ... 240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 20 Hp
(550 ... 600 V AC) Three Phase 25 Hp
(200 ... 208 V AC) Three Phase 7.5 Hp
(220 ... 240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 20 Hp
(550 ... 600 V AC) Three Phase 25 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
257 mm
Package Level 1 Height:
288 mm
Package Level 1 Gross Weight:
3.2 kg
Package Level 1 EAN:
7320500400616
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SFA897104R7000 ABB
ABB 1SFA897104R7000 ABB
€540,95
Only 6 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
90 mm
Product Net Height:
245 mm
Product Net Depth / Length:
184 mm
Product Net Weight:
2.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 9 kW
(400 V) 18.5 kW
(500 V) 22 kW
(230 V) 9 kW
(400 V) 18.5 kW
(500 V) 22 kW
Rated Operational Current - In-Line Connection (Ie):
37 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE37
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 10 Hp
(220 ... 240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 25 Hp
(550 ... 600 V AC) Three Phase 30 Hp
(200 ... 208 V AC) Three Phase 10 Hp
(220 ... 240 V AC) Three Phase 10 Hp
(440 ... 480 V AC) Three Phase 25 Hp
(550 ... 600 V AC) Three Phase 30 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
257 mm
Package Level 1 Height:
288 mm
Package Level 1 Gross Weight:
3.2 kg
Package Level 1 EAN:
7320500400623
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter

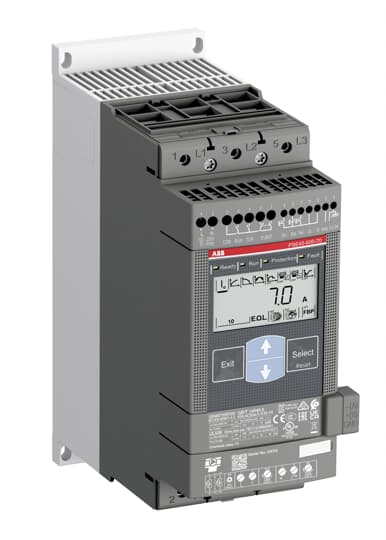

1SFA897105R7000 ABB
ABB 1SFA897105R7000 ABB
€655,95
Only 8 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
90 mm
Product Net Height:
245 mm
Product Net Depth / Length:
184 mm
Product Net Weight:
2.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 11 kW
(400 V) 22 kW
(500 V) 30 kW
(230 V) 11 kW
(400 V) 22 kW
(500 V) 30 kW
Rated Operational Current - In-Line Connection (Ie):
45 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE45
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 10 Hp
(220 ... 240 V AC) Three Phase 15 Hp
(440 ... 480 V AC) Three Phase 30 Hp
(550 ... 600 V AC) Three Phase 40 Hp
(200 ... 208 V AC) Three Phase 10 Hp
(220 ... 240 V AC) Three Phase 15 Hp
(440 ... 480 V AC) Three Phase 30 Hp
(550 ... 600 V AC) Three Phase 40 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
257 mm
Package Level 1 Height:
288 mm
Package Level 1 Gross Weight:
3.2 kg
Package Level 1 EAN:
7320500400630
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SFA897106R7000 ABB
ABB 1SFA897106R7000 ABB
€718,95
Only 9 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
90 mm
Product Net Height:
245 mm
Product Net Depth / Length:
184 mm
Product Net Weight:
2.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 15 kW
(400 V) 30 kW
(500 V) 37 kW
(230 V) 15 kW
(400 V) 30 kW
(500 V) 37 kW
Rated Operational Current - In-Line Connection (Ie):
60 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE60
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 50 Hp
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 20 Hp
(440 ... 480 V AC) Three Phase 40 Hp
(550 ... 600 V AC) Three Phase 50 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
6528473c-4979-467d-a71c-ecd91610a0bc Sweden
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
257 mm
Package Level 1 Height:
288 mm
Package Level 1 Gross Weight:
3.2 kg
Package Level 1 EAN:
7320500400647
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
1SFA897107R7000 ABB
ABB 1SFA897107R7000 ABB
€856,95
Only 9 units left

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
90 mm
Product Net Height:
245 mm
Product Net Depth / Length:
184 mm
Product Net Weight:
2.5 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 18.5 kW
(400 V) 37 kW
(500 V) 45 kW
(230 V) 18.5 kW
(400 V) 37 kW
(500 V) 45 kW
Rated Operational Current - In-Line Connection (Ie):
72 A
Service Factor Percentage:
100 %
Overload Protection:
Build-in electronic overload protection
Integrated Electronic Overload:
Yes
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
0 ... 30 second [unit of time]
1 ... 30 second [unit of time]
Initial Voltage During Start:
30 ... 70 %
Step Down Voltage Special Ramp:
No %
Current Limit Function:
1.5 ... 7xIe
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
Yes
Overload Signal Relay:
Yes
Analog Outputs:
4…20 mA
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Signal Indication Protection (LED):
Yellow
Signal Indication Fault (LED):
Red
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
Modbus-RTU
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Hole Diameter 8.5 mm
Rigid 1/2 x 2.5 ... 70 mm²
Width and Thickness 17.5x5 mm
Connecting Capacity Control Circuit:
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Rigid 1 x 2.5 mm²
Rigid 2 x 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 2.5
Tightening Torque:
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Control Circuit 0.5 N·m
Main Circuit 9 N·m
Supply Circuit 0.5 N·m
Product Main Type:
PSE72
Function:
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Soft start with torque control
Soft start with voltage ramp
Soft stop with torque control
Soft stop with voltage ramp
Kick start
Sequence start
Current limit
Start reverse (external contactors)
Automatic restart
Event log
Protection Function:
Electronic overload protection, EOL; Locked rotor protection; Current underload protection

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 25 Hp
(440 ... 480 V AC) Three Phase 50 Hp
(550 ... 600 V AC) Three Phase 60 Hp
(200 ... 208 V AC) Three Phase 20 Hp
(220 ... 240 V AC) Three Phase 25 Hp
(440 ... 480 V AC) Three Phase 50 Hp
(550 ... 600 V AC) Three Phase 60 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb
Control Circuit 4.4 in·lb
Main Circuit 79.7
Supply Circuit 4.4 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP:
8462d3d9-3bdb-42b0-9715-4ea626c99564 Sweden
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
178 mm
Package Level 1 Depth / Length:
257 mm
Package Level 1 Height:
288 mm
Package Level 1 Gross Weight:
3.2 kg
Package Level 1 EAN:
7320500400654
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
JCU-11 ABB - Control unit 3AUA0000047068
ABB JCU-11 ABB - Control unit 3AUA0000047068
€1.128,95
Only 2 units left

JCU-11 JCU-11 Control Unit
PM810V2 ABB - 3BSE013220R1
ABB PM810V2 ABB - 3BSE013220R1
€1.857,95
Only 4 units left

PM810V2 S800 Processor for AC 70 Processor Modules
PM511V16 ABB - Processor Module 3BSE011181R1
ABB PM511V16 ABB - Processor Module 3BSE011181R1
€16.311,95
Only 6 units left

PM511V16 ABB Processor Module - 16 MB For Advant Controller 450
PM810V1 ABB - 3BSE008580R1
ABB PM810V1 ABB - 3BSE008580R1
€2.488,95
Only 1 unit left

S800 Processor Unit SE9811M581
ICMK-CS31 ABB - 1SBP260056R1001
ABB ICMK-CS31 ABB - 1SBP260056R1001
€0,00
Sold Out

CONTROLLER REMOTE UNIT ICMK-CS31 ADVANT 24VDC
ICMK14F1 ABB
ABB ICMK14F1 ABB
€714,95
Only 2 units left

8 binary inputs, 6 relay outputs, 24 Vdc power supply
07KT98C ABB - GJR5253100R3260
ABB 07KT98C ABB - GJR5253100R3260
€970,95
Only 4 units left

07KT98C Programmable Logic Controller
07KT98B ABB - GJR5253100R3160
ABB 07KT98B ABB - GJR5253100R3160
€0,00
Sold Out

07KT98B Programmable Logic Controller
07KT98-S ABB - GJR5253100R2260
ABB 07KT98-S ABB - GJR5253100R2260
€3.334,95
Only 3 units left

07KT98-S Programmable Logic Controller
07KT98 ABB - GJR5253100R026007KT98 ABB - GJR5253100R0260
ABB 07KT98 ABB - GJR5253100R0260
€2.182,95
Only 8 units left

07KT98 Advant Controller 31 Basic Unit
07KT96 ABB
ABB 07KT96 ABB
€0,00
Sold Out

Advant Controller Basic Unit 31 07 KT 96
07KP93 ABB - GJR5253200R1161
ABB 07KP93 ABB - GJR5253200R1161
€1.794,95
Only 1 unit left

MODBUS, RTU, Master or slave (RS232 / RS485), AC31 Series Compact Network Interface Interface, Connection to the central unit via a ribbon cable, Supply voltage 24 V DC.

Recently viewed
