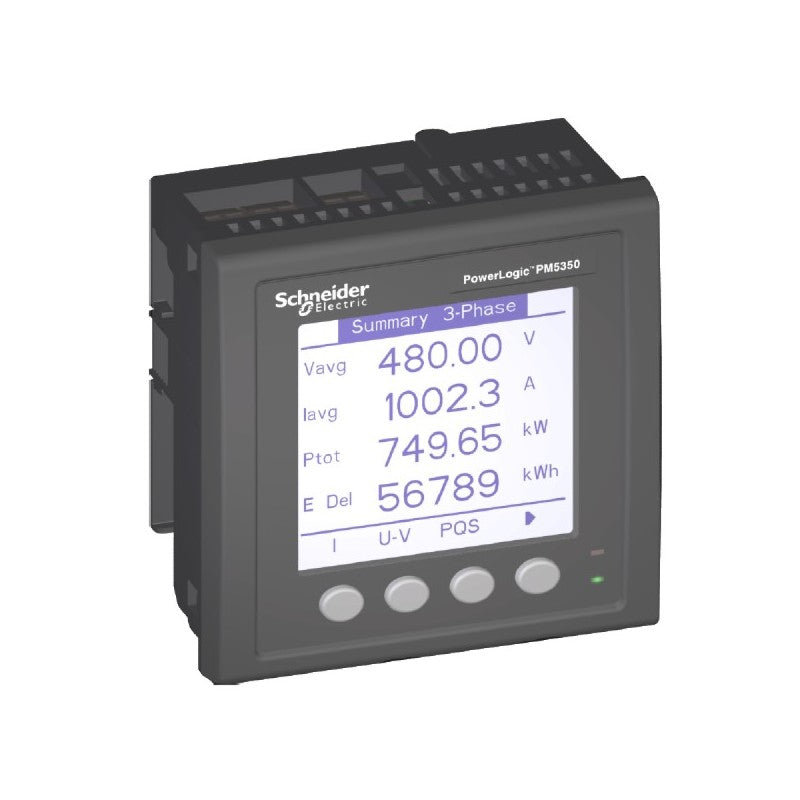

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 32 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. Include a non-volatile memory for several parameters and alarms. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 85 to 265 VAC and 100 to 300 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20V AC to 480V AC, CAT III or 20V AC to 690V AC, CAT II at 45 Hz to 70 Hz. The range of measurement voltage between Phase and Neutral is 20V AC to 277V AC, CAT III or 20V AC to 400V AC, CAT II at 45 Hz to 70 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has four digital inputs and dual relay outputs. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.24 inches (57 millimetres), height 3.78 inches (96 millimetres) and product weight 8.8 onces (250 g).
Main
| Characteristic | Value(s) |
|---|---|
| Range | PowerLogic |
| product name | PowerLogic PM5350 |
| Device short name | PM5350 |
| Product or component type | Power meter |
Complementary
| Characteristic | Value(s) |
|---|---|
| Power quality analysis | total demand distortion total harmonic distortion |
| Device application | Power monitoring |
| Type of measurement | Current Voltage Frequency Power factor Energy Apparent power Active power Reactive power |
| supply voltage | 85...265 V AC 45...65 Hz 100...300 V DC |
| Network frequency | 50 Hz 60 Hz |
| [In] rated current | 5 A 1 A |
| type of network | 1P + N 3P + N 3P |
| Maximum power consumption in VA | 11.9 VA |
| Ride-through time | 100 ms 120 V AC typical 400 ms 230 V AC typical 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 6 lines |
| Sampling rate | 32 samples/cycle |
| Measurement current | 5â¦9000 mA |
| Analogue input type | Current 0.05...9 A (impedance <= 0.3 mOhm) Voltage (impedance 10 MOhm) |
| Measurement voltage | 35â¦480 V AC 45...65 Hz phase to phase 20â¦277 V AC phase to neutral |
| Frequency measurement range | 45â¦70 Hz |
| Number of inputs | 4 digital |
| Measurement accuracy | Current +/- 0.3 % Voltage +/- 0.3 % Frequency +/- 0.05 % Power factor +/- 0.005 Active energy +/- 0.5 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Apparent energy +/- 0.5 % Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 Class 0.5 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 62053-23 Class 2 reactive energy conforming to IEC 61557-12 Class 0.5 power conforming to IEC 61557-12 |
| Number of outputs | 2 relay |
| Communication port protocol | JBUS Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds |
| Communication port support | Terminal block: RS485 |
| Data recording | Min/max of instantaneous values Alarms |
| Connections - terminals | Voltage circuit: screw terminal block4 Control circuit: screw terminal block2 Current transformer: screw terminal block6 Input/output circuit: screw terminal block6 Relay output: screw terminal block4 |
| Mounting mode | Flush-mounted |
| Type of installation | For indoor use in a stationary panel |
| Standards | IEC 61010-1 |
| Product certifications | CE CULus |
| Width | 96 mm |
| Depth | 44 mm |
| Height | 96 mm |
| Product weight | 0.25 kg |
advanced touchscreen panel 320 x 240 pixels QVGA- 5.7" TFT - 96 MB

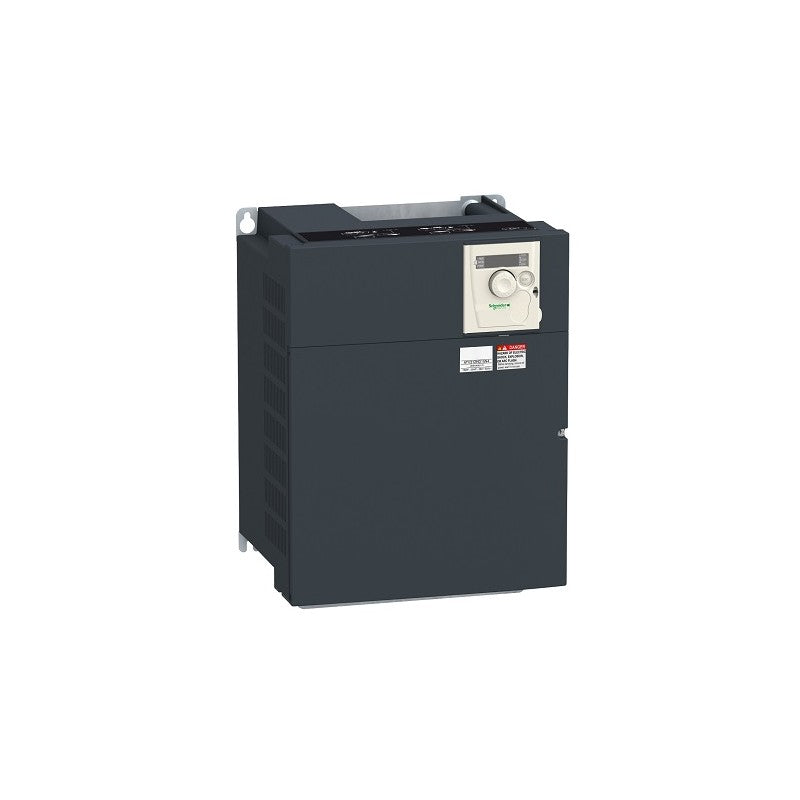

Variable Speed Drive Altivar ATV312 - 11kW - 25kVA - 397 W - 380..500 V - 3-Phase Supply

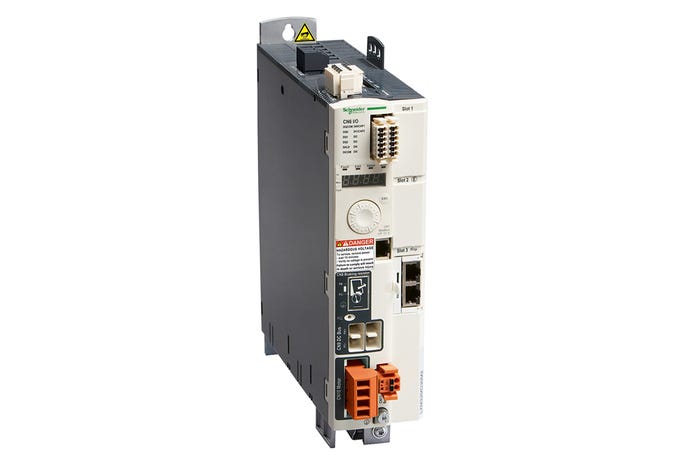

This Product Is Part Of The Lexium 32 Range, An Offer Of Motion Servo Drives For Machines From 0.15Kw To 7Kw. The Ac Motion Servo Drive For One Axis, Features With An Integrated Emc Filter, Compact Drive With Analogue Inputs And Pulse Train. It Provides 2 Capture, 2 Safety, 4 Logic Discrete Inputs And 3 Discrete Outputs. Thanks To Its Compact Design This Servo Drive Enables To Save On Cabinet Space And Size, Reduces The Machine Footprint And Decreases Costs. It Is A Motion Servo Drive With A Rated Supply Voltage Of 100V To 120V, 200V To 240V (Single Phase), A Continuous Output Current Of 6A At 8Khz And A Continuous Power Of 3300W At 230V. It Is Furnished With Terminal For Electrical Connection And Rj45 Connector For Modbus Integrated Communication Interface. Canopen, Canmotion, Ethernet/Ip, Ethercat, Profibus, Devicenet Possible With Option Card. It Is An Ip20 Rated Product. Its Dimensions Are 68Mm (Width) X 237Mm (Depth) X 270Mm (Height). It Weighs 1.9Kg. This Product Is Certified By Ce, Csa, Rohs, Tuv And Ul. It Meets En/Iec 61800-3 And En/Iec 61800-5-1 Standards. This Product Is Compatible With Servo Motors Bmh And Bsh. Servo Drive Range With Four Servo Drive Models And Two Servo Motor Families Plus An Intelligent Selection Of Options. It Provides You With The Drive And Motor Combination That Has Exactly The Right Power, Performance And Functionality.
compact base M258 - 42 I/O - 24 V DC - CANopen

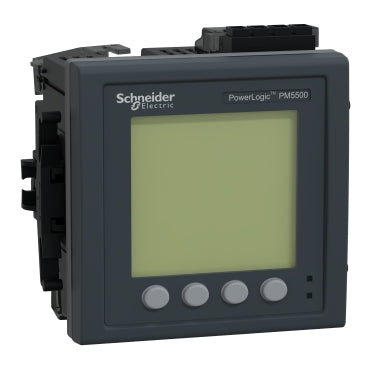

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.2S accuracy per IEC 62053-22 standard and 128 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 63rd Harmonic. Include 1.1 MegaBytes of memory for up to 14 selectable parameters with configurable interval and duration. This meter also feature the direct monitoring of neutral current. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 480 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 20 to 690 VAC at 45 to 65 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 45 to 65 Hz. Communication protocol are Modbus RTU and ASCII 2 wires with RS485 port support plus Modbus TCP/IP, Ethernet/IP and BACnet/IP based on 10/100 Mbit/s, daisy chain Ethernet with RJ45 port support. The embedded communication capabilities allow the support of the DNP 3.0 protocol, the access to an onboard web server and a Serial to Ethernet gateway. The meter also has four digital inputs with WAGES support and two digital outputs. There are 52 configurable alarms and it supports eight tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 3.03 inches (77 millimetres), height 3.78 inches (96 millimetres) and product weight 15.9 onces (450 g).
Main
| Characteristic | Value(s) |
|---|---|
| Range | PowerLogic |
| product name | PowerLogic PM5000 |
| Device short name | PM5560 |
| Product or Component Type | Power meter |
Complementary
| Characteristic | Value(s) |
|---|---|
| Power quality analysis | up to the 63rd harmonic |
| Metering type | Measured neutral current Calculated ground current |
| Device Application | Gateway WAGES metering Power monitoring Multi-tariff |
| Type of measurement | Current Voltage Frequency Power factor Energy Active and reactive power |
| supply voltage | 100...300 V DC 90...528 V AC 45...65 Hz |
| Network Frequency | 60 Hz 50 Hz |
| Line Rated Current | 1 A 5 A |
| type of network | 3P + N 3P 1P + N |
| Maximum power consumption in VA | 16 VA 480 V |
| Ride-through time | 35 ms 120 V AC typical 129 ms 230 V AC typical 50 ms 125 V DC typical |
| Display Type | Backlit LCD |
| Display Resolution | 128 x 128 pixels |
| Sampling rate | 128 samples/cycle |
| Measurement current | 50â¦10000 mA |
| Analogue input type | Voltage (impedance 5 MOhm) Current (impedance <= 0.3 mOhm) |
| Measurement voltage | 20â¦400 V AC 45...65 Hz between phase and neutral 20â¦828 V AC 45...65 Hz between phases |
| Frequency measurement range | 45â¦65 Hz |
| Number of inputs | 4 digital |
| Measurement accuracy | Apparent power +/- 0.5 % Frequency +/- 0.05 % Active energy +/- 0.2 % Reactive energy +/- 1 % Active power +/- 0.2 % Voltage +/- 0.1 % Power factor +/- 0.005 Current +/- 0.15 % Reactive power +/- 1 % |
| Accuracy class | Class 0.2S active energy IEC 62053-22 |
| Number of Outputs | 2 digital |
| Information displayed | Tariff 8) |
| Communication port protocol | Modbus RTU and ASCII 9.6, 19.2 and 38.4 kbauds even/odd or none - 2 wires 2500 V JBUS Modbus TCP/IP 10/100 Mbit/s 2500 V Ethernet Modbus TCP/IP daisy chain BACnet IP DNP3 over ethernet |
| Communication port support | RS485 ETHERNET |
| Communication gateway | Ethernet/serial |
| Data recording | Event logs Maintenance logs Min/max of instantaneous values Data logs Alarm logs Time stamping |
| Memory capacity | 1.1 MB |
| Web services | Alarm notification by e-mail Diagnostic via predefined web pages Web server Real time viewing of data |
| Ethernet service | SNTP client SNMP-Traps |
| Connections - terminals | Voltage circuit screw terminal block4 Control circuit screw terminal block2 Current transformer screw terminal block6 RS485 link screw terminal block4 Digital input screw terminal block8 Digital output screw terminal block4 Ethernet network RJ45 connector2 |
| Mounting Mode | Flush-mounted |
| Mounting support | Framework |
| Standards | EN 50470-3 IEC 61557-12:2015 IEC 62053-22:2020 IEC 62053-24 IEC 60529 EN 50470-1 UL 61010-1 ANSI C12.20 IEC 62053-23:2020 IEC 62052-11:2020 IEC 62052-31:2015 |
| Product certifications | CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 BTL |
| Width | 3.8 in (96 mm) |
| Depth | 2.8 in (72 mm) |
| Height | 3.8 in (96 mm) |
| Product Weight | 15.9 oz (450 g) |

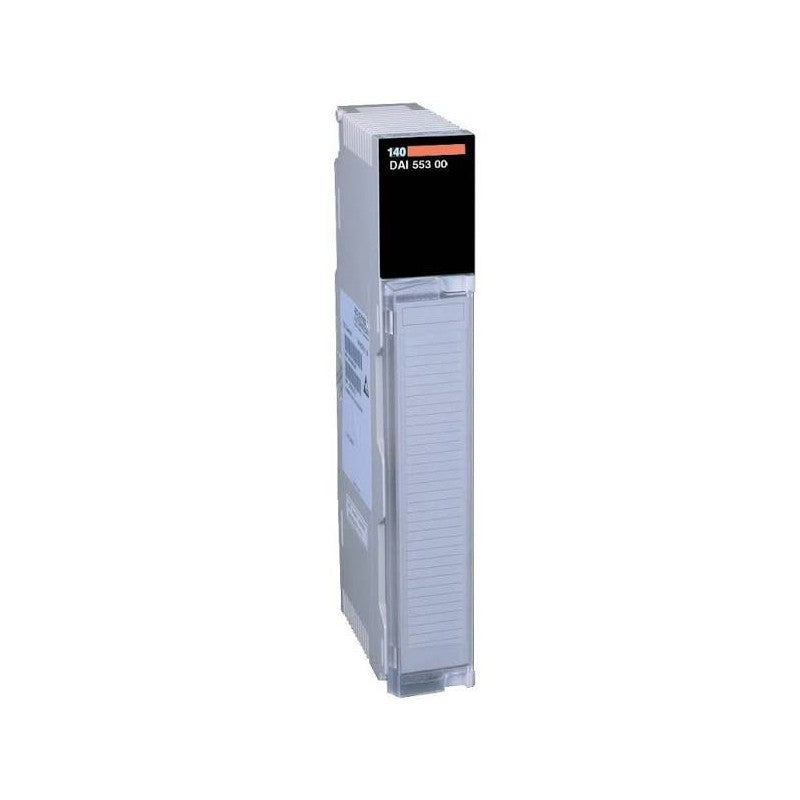

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | VAC discrete input modules |
| Software name | Concept ProWORX 32 Unity Pro |
| Discrete input number | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 16 |
| Addressing requirement | 1 input word |
| Discrete input voltage | 115 V AC |
| Input current | 11.1 mA 57...63 Hz 13.2 mA 47...53 Hz |
| Voltage state 1 guaranteed | 79...132 V AC 57...63 Hz 85...132 V AC 47...53 Hz |
| Voltage state 0 guaranteed | 0...20 V AC 57...63 Hz 0...20 V AC 47...53 Hz |
| Input impedance | 12000 Ohm capacitive 57...63 Hz 14400 Ohm capacitive 47...53 Hz |
| Network frequency limits | 47â¦63 Hz |
| Maximum leakage current | 2.1 mA |
| Absolute maximum input | 132 V continuous 156 V 10 s 200 V 1 cycle |
| Response Time | 4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off |
| Isolation between channels | 1780 Vrms for 1 minute |
| Isolation between channels and bus | 1780 Vrms for 1 minute |
| Bus current requirement | 180 mA |
| Maximum power dissipation in W | 5.5 W |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Marking | CE |
| Module format | Standard |
| Product Weight | 0.68 lb(US) (0.31 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | VAC discrete input modules |
| Software name | Concept ProWORX 32 Unity Pro |
| Discrete input number | 16 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 16 |
| Addressing requirement | 1 input word |
| Discrete input voltage | 115 V AC |
| Input current | 11.1 mA 57...63 Hz 13.2 mA 47...53 Hz |
| Voltage state 1 guaranteed | 79...132 V AC 57...63 Hz 85...132 V AC 47...53 Hz |
| Voltage state 0 guaranteed | 0...20 V AC 57...63 Hz 0...20 V AC 47...53 Hz |
| Input impedance | 12000 Ohm capacitive 57...63 Hz 14400 Ohm capacitive 47...53 Hz |
| Network frequency limits | 47â¦63 Hz |
| Maximum leakage current | 2.1 mA |
| Absolute maximum input | 132 V continuous 156 V 10 s 200 V 1 cycle |
| Response Time | 4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off |
| Isolation between channels | 1780 Vrms for 1 minute |
| Isolation between channels and bus | 1780 Vrms for 1 minute |
| Bus current requirement | 180 mA |
| Maximum power dissipation in W | 5.5 W |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Marking | CE |
| Module format | Standard |
| Product Weight | 0.68 lb(US) (0.31 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | DIO head-end adaptor |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | 140CRA21120 140CRA21110 |
| Number of port | 1 Modbus Plus RS485 twisted pair single copper 1 Modbus RS232 twisted pair single copper |
| Transmission Rate | 1 Mbit/s |
| I/O words | 30 I/32 O |
| Checks | Processor Checksum RAM address RAM |
| Power dissipation in W | 4 W |
| Bus current requirement | 780 mA |
| Module format | Standard |
Modicon Quantum Processor 486K RAM 2MEG 2xMB, 1xMB

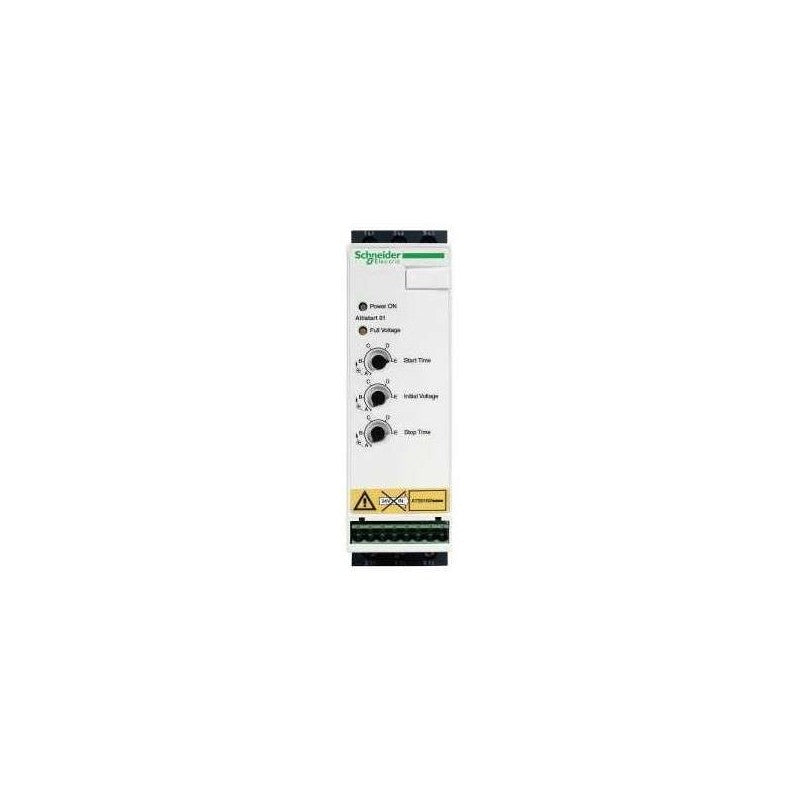

This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 32A. This Altistart 01 can be used for a motor rated power up to 7.5kW or 10hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Altistart 01 |
| Product or Component Type | Soft starter |
| Product destination | Asynchronous motors |
| Product Specific Application | Simple machine |
| Device short name | ATS01 |
| Phase | 3 phase |
| [Us] rated supply voltage | 380...415 V - 10...10 % |
| Motor power kW | 15 kW, 3 phase 380...415 V |
| IcL starter rating | 32 A |
| Utilisation category | AC-53B EN/IEC 60947-4-2 |
| Current consumption | 160 A at nominal load |
| Type of start | Start with voltage ramp |
| Power dissipation in W | 4.5 W at full load and at end of starting 324.5 W in transient state |
Complementary
| Characteristic | Value(s) |
|---|---|
| Assembly style | With heat sink |
| Function Available | Integrated bypass |
| Supply voltage limits | 342â¦456 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| Output voltage | <= power supply voltage |
| [Uc] control circuit voltage | Built into the starter |
| Starting time | Adjustable from 1 to 10 s 1 s / 50 10 s / 5 5 s / 10 |
| Deceleration time symb | Adjustable from 1 to 10 s |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete input type | Logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm |
| Discrete input voltage | 24...40 V |
| Discrete input logic | Positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA |
| Discrete output current | 2 A DC-13 3 A AC-15 |
| Discrete output type | Open collector logic LO1 end of starting signal Relay outputs R1A, R1C NO |
| Discrete output voltage | 24 V 6...30 V) open collector logic |
| Minimum switching current | 10 mA 6 V DC relay outputs |
| Maximum switching current | Relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive Relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive |
| Display type | 1 LED Green)starter powered up 1 LED Yellow)nominal voltage reached |
| Tightening torque | 4.4 lbf.in (0.5 N.m) 16.8â¦22.1 lbf.in (1.9â¦2.5 N.m) |
| Electrical connection | 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - rigid with cable end 2 1...6 mm² AWG 10 power circuit Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal - flexible with cable end 1 1...6 mm² AWG 10 power circuit |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 6.06 in (154 mm) |
| Width | 1.8 in (45 mm) |
| Depth | 5.2 in (131 mm) |
| Product Weight | 1.23 lb(US) (0.56 kg) |
| Compatibility code | ATS01N2 |
| Motor power range AC-3 | 15â¦25 kW 380â¦440 V 3 phase |
| Motor starter type | Soft starter |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Processor |
| Software name | ProWORX 32 Concept |
| Processor name | 80486 |
| Mathematical coprocessor | With |
Complementary
| Characteristic | Value(s) |
|---|---|
| Clock frequency | 66 MHz |
| Memory description | Internal RAM 896 kB |
| Exact time for 1 Kinstruction | 0.1...0.5 ms LL984 |
| Watchdog timer | 250 ms |
| Clock drift | +/-8 s/day 32â¦140 °F (0â¦60 °C) |
| I/O words | 30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote |
| I/O words/network | 500 I/500 O distributed |
| Drops/network | 63 distributed |
| Number of drops | 31 remote |
| Number of network | 2 remote 3 distributed |
| Battery type | Lithium 7 µA 210 µA |
| Battery Capacity | 1.2 Ah |
| Battery life | 10 year(s) |
| Number of port | 1 Modbus Plus 2 Modbus RS232 |
| Communication module processor capacity | 6 NOM, NOE, CR, NMS |
| Switch Function | Key switch |
| Marking | CE |
| Bus current requirement | 1250 mA |
| Module format | Standard |
| Product Weight | 1.87 lb(US) (0.85 kg) |
Schneider

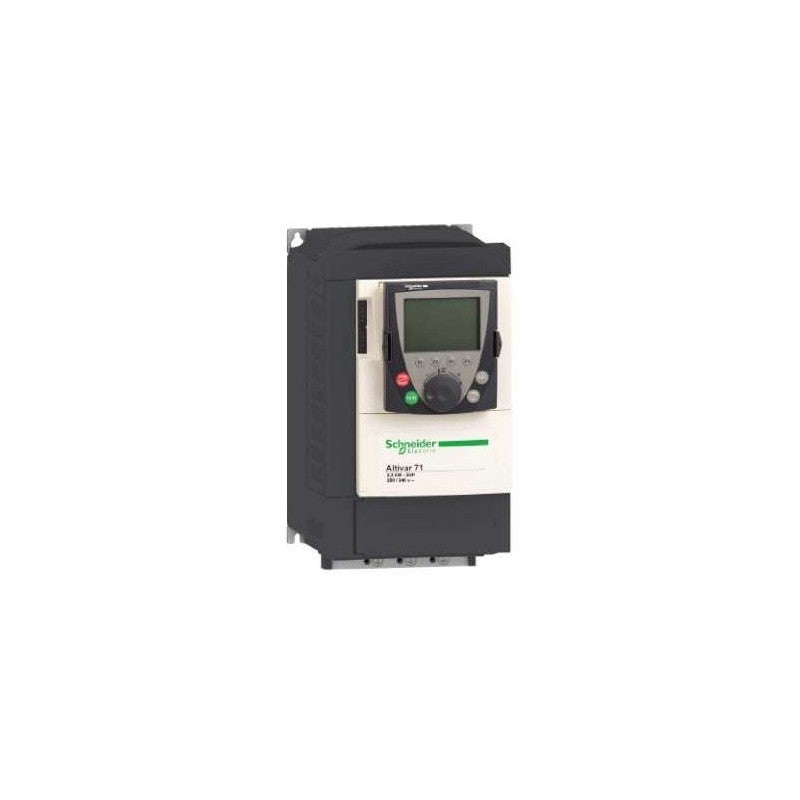

ATV71HU40N4 Schneider Electric Altivar 71 Variable speed drive
Sale price
€580,95
In stock, 11 unitsMain
| Characteristic | Value(s) |
|---|---|
| Range of Product | Altivar 71 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Complex, high-power machines |
| Component name | ATV71 |
| Motor power kW | 4 kW, 3 phase 380...480 V |
| Maximum Horse Power Rating | 5 hp, 3 phase 380...480 V |
| Maximum motor cable length | 164.04 ft (50 m) shielded cable 328.08 ft (100 m) unshielded cable |
| power supply voltage | 380...480 V - 15...10 % |
| Phase | 3 phase |
| Line current | 11.5 A 480 V 3 phase 4 kW / 5 hp 14.1 A 380 V 3 phase 4 kW / 5 hp |
| EMC filter | Integrated |
| Assembly style | With heat sink |
| Apparent power | 9.3 kVA 380 V 3 phase 4 kW / 5 hp |
| Prospective line Isc | 5 kA 3 phase |
| Nominal output current | 10.5 A 4 kHz 380 V 3 phase 4 kW / 5 hp 7.6 A 4 kHz 460 V 3 phase 4 kW / 5 hp |
| Maximum transient current | 15.8 A 60 s 3 phase 4 kW / 5 hp 17.3 A 2 s 3 phase 4 kW / 5 hp |
| Output frequency | 0.1â¦599 Hz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 1...16 kHz adjustable 4...16 kHz with derating factor |
| Asynchronous motor control profile | Flux vector control (FVC) with sensor (current vector) ENA (Energy adaptation) system for unbalanced loads Sensorless flux vector control (SFVC) (voltage or current vector) Voltage/frequency ratio (2 or 5 points) |
| Type of polarization | No impedance Modbus |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product destination | Asynchronous motors Synchronous motors |
| power supply voltage limits | 323â¦528 V |
| power supply frequency | 50...60 Hz - 5...5 % |
| power supply frequency limits | 47.5...63 Hz |
| Speed range | 1â¦100 asynchronous motor in open-loop mode, without speed feedback 1â¦1000 asynchronous motor in closed-loop mode with encoder feedback 1â¦50 synchronous motor in open-loop mode, without speed feedback |
| Speed accuracy | +/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn |
| Torque accuracy | +/- 15 % in open-loop mode, without speed feedback +/- 5 % in closed-loop mode with encoder feedback |
| Transient overtorque | 170 % +/- 10 % 60 s every 10 minutes 220 % +/- 10 % 2 s |
| Braking torque | <= 150 % with braking or hoist resistor 30 % without braking resistor |
| Synchronous motor control profile | Vector control without speed feedback |
| Regulation loop | Adjustable PI regulator |
| Motor slip compensation | Automatic whatever the load Suppressable Not available in voltage/frequency ratio (2 or 5 points) Adjustable |
| diagnostic | 1 LED (red) for drive voltage |
| Output voltage | <= power supply voltage |
| Insulation | Electrical between power and control |
| type of cable for mounting in an enclosure | With a NEMA Type1 kit 3 UL 508 cable 104 °F (40 °C), copper 75 °C / PVC With an IP21 or an IP31 kit 3 IEC cable 104 °F (40 °C), copper 70 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 70 °C / PVC Without mounting kit 1 IEC cable 113 °F (45 °C), copper 90 °C / XLPE/EPR |
| Electrical connection | Terminal 2.5 mm², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) Terminal 4 mm², AWG 10 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Tightening torque | 5.3 lbf.in (0.6 N.m) AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR) 12.4 lbf.in (1.4 N.m), 12.3 lb.in L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection Internal supply 24 V DC 21â¦27 V), <200 mA overload and short-circuit protection |
| Analogue input number | 2 |
| Analogue input type | AI1-/Al1+ bipolar differential voltage +/- 10 V DC 24 V max 11 bits + sign AI2 software-configurable current 0...20 mA 242 Ohm 11 bits AI2 software-configurable voltage 0...10 V DC 24 V max 30000 Ohm 11 bits |
| input sampling time | 2 ms +/- 0.5 ms AI1-/Al1+) - analog 2 ms +/- 0.5 ms Al2) - analog 2 ms +/- 0.5 ms LI1...LI5) - discrete 2 ms +/- 0.5 ms LI6)if configured as logic input - discrete |
| Response time | <= 100 ms in STO (Safe Torque Off) AO1 2 ms +/- 0.5 ms analog R1A, R1B, R1C 7 ms +/- 0.5 ms discrete R2A, R2B 7 ms +/- 0.5 ms discrete |
| absolute accuracy precision | +/- 0.6 % AI1-/Al1+) for a temperature variation 60 °C +/- 0.6 % AI2) for a temperature variation 60 °C +/- 1 % AO1) for a temperature variation 60 °C |
| Linearity error | +/- 0.15 % of maximum value AI1-/Al1+, AI2) +/- 0.2 % AO1) |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable logic output 10 V 20 mA AO1 software-configurable current 0...20 mA 500 Ohm 10 bits AO1 software-configurable voltage 0...10 V DC 470 Ohm 10 bits |
| Discrete output number | 2 |
| Discrete output type | Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles Configurable relay logic R2A, R2B) NO - 100000 cycles |
| Minimum switching current | 3 mA 24 V DC configurable relay logic |
| Maximum switching current | R1, R2 2 A 250 V AC inductive, cos phi = 0.4 R1, R2 2 A 30 V DC inductive, cos phi = 0.4 R1, R2 5 A 250 V AC resistive, cos phi = 1 R1, R2 5 A 30 V DC resistive, cos phi = 1 |
| Discrete input number | 7 |
| Discrete input type | LI1...LI5 programmable 24 V DC level 1 PLC 3500 Ohm LI6 switch-configurable 24 V DC level 1 PLC 3500 Ohm LI6 switch-configurable PTC probe 0â¦6 1500 Ohm PWR safety input 24 V DC 1500 Ohm ISO 13849-1 level d |
| Discrete input logic | Negative logic (sink) LI1...LI5), > 16 V, < 10 V Positive logic (source) LI1...LI5), < 5 V, > 11 V Negative logic (sink) LI6)if configured as logic input, > 16 V, < 10 V Positive logic (source) LI6)if configured as logic input, < 5 V, > 11 V |
| Acceleration and deceleration ramps | S, U or customized Linear adjustable separately from 0.01 to 9000 s Automatic adaptation of ramp if braking capacity exceeded, by using resistor |
| Braking to standstill | By DC injection |
| Protection type | Against exceeding limit speed drive Against input phase loss drive Break on the control circuit drive Input phase breaks drive Line supply overvoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Overvoltages on the DC bus drive Short-circuit between motor phases drive Thermal protection drive Motor phase break motor Power removal motor Thermal protection motor |
| Insulation resistance | > 1 mOhm 500 V DC for 1 minute to earth |
| Frequency resolution | Analog input 0.024/50 Hz Display unit 0.1 Hz |
| Communication Port Protocol | CANopen Modbus |
| Connector type | 1 RJ45 on front face)Modbus 1 RJ45 on terminal)Modbus Male SUB-D 9 on RJ45CANopen |
| Physical interface | 2-wire RS 485 Modbus |
| Transmission frame | RTU Modbus |
| Transmission rate | 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps Modbus on terminal 9600 bps, 19200 bps Modbus on front face 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen |
| Data format | 8 bits, 1 stop, even parity Modbus on front face 8 bits, odd even or no configurable parity Modbus on terminal |
| Number of addresses | 1â¦127 CANopen 1â¦247 Modbus |
| Method of access | Slave CANopen |
| Marking | CE |
| Operating position | Vertical +/- 10 degree |
| Height | 10.2 in (260 mm) |
| Depth | 7.4 in (187 mm) |
| Width | 6.1 in (155 mm) |
| Product Weight | 8.8 lb(US) (4 kg) |
| Functionality | Full |
| Specific application | Other applications |
| Option card | Communication card CC-Link Controller inside programmable card Communication card DeviceNet Communication card EtherNet/IP Communication card Fipio I/O extension card Communication card Interbus-S Interface card for encoder Communication card Modbus Plus Communication card Modbus TCP Communication card Modbus/Uni-Telway Overhead crane card Communication card Profibus DP Communication card Profibus DP V1 |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO drop adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum |
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | Executive checksum RAM address/data Power up and runtime |
| Power dissipation in W | 3 W 1 channel |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | RIO drop adaptor module |
Complementary
| Characteristic | Value(s) |
|---|---|
| Product Compatibility | Quantum |
| Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 1 female connector F, elbowed with single cable |
| Diagnostics startup | Executive checksum RAM address/data Power up and runtime |
| Power dissipation in W | 3 W 1 channel |
| Bus current requirement | 600 mA 1 channel |
| Module format | Standard |

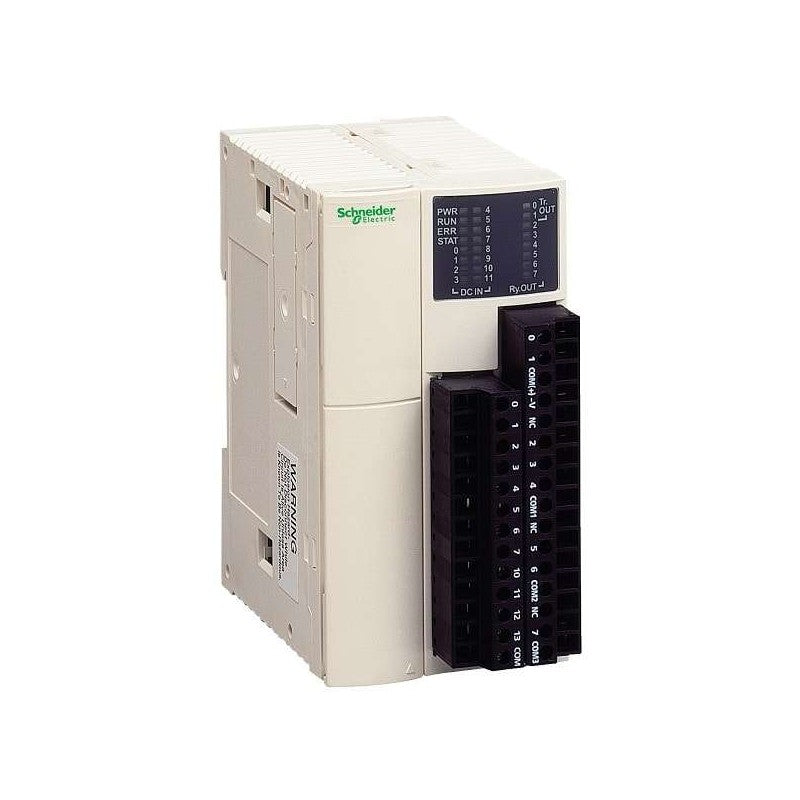

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Twido |
| Product or Component Type | Modular base controller |
| Discrete I/O number | 20 |
| Discrete input number | 12 |
| Discrete input logic | Sink or source |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Discrete output number | 2 transistor source) 6 relay |
| [Us] rated supply voltage | 24 V DC |
| Maximum Number of I/O Expansion Module | 7 |
| Free slots | 2 |
| Use of slot | 32 K or 64 K memory cartridge and 1 realtime clock |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 20.4...26.4 V |
| Discrete input current | 5 mA I0.0 to I0.1 5 mA I0.6 to I0.7 7 mA I0.2 to I0.5 7 mA I0.8 to I0.11 |
| Input impedance | 4700 Ohm I0.2 to I0.5 4700 Ohm I0.8 to I0.11 5700 Ohm I0.0 to I0.1 5700 Ohm I0.6 to I0.7 |
| Filter time | 150 µs for I0.2 to I0.5 at state 0 150 µs for I0.8 to I0.11 at state 0 35 µs for I0.0 to I0.1 at state 1 35 µs for I0.6 to I0.7 at state 1 40 µs for I0.2 to I0.5 at state 1 40 µs for I0.8 to I0.11 at state 1 45 µs for I0.0 to I0.1 at state 0 45 µs for I0.6 to I0.7 at state 0 |
| Insulation between channel and internal logic | 1500 Vrms for 1 minute |
| Insulation resistance between channel | None |
| Discrete output voltage | 24 V |
| Output voltage limits | 20.4...28.8 V |
| Current per channel | 2 A relay output 0.36 A transistor output |
| Maximum current per output common | 1 A transistor output 8 A relay output |
| Response Time | 5 µs for Q0.0 to Q0.1 at state 0 5 µs for Q0.0 to Q0.1 at state 1 |
| [Ures] residual voltage | 1 V at state 1 |
| Maximum leakage current | 0.1 mA |
| Output overvoltage protection | 39 V |
| Maximum tungsten load | 8 W |
| Surge current | 5 A relay output |
| Discrete output current | 300 mA |
| Minimum load | 0.1 mA |
| Contact resistance | 40000 µOhm |
| Load current | 2 A 240 V AC inductive 30 cyc/mn relay output 2 A 240 V AC resistive 30 cyc/mn relay output 2 A 30 V DC inductive 30 cyc/mn relay output 2 A 30 V DC resistive 30 cyc/mn relay output |
| Mechanical durability | 20000000 cycles relay output |
| Electrical durability | 100000 cycles relay output |
| Current consumption | 30 mA 5 V DC at state 1 40 mA 24 V DC at state 1 5 mA 5 V DC at state 0 |
| I/O connection | Removable screw terminal block |
| Maximum input/output number | 132 removable screw terminal block with I/O expansion module 188 spring terminal block with I/O expansion module 244 HE-10 connector with I/O expansion module |
| Supply voltage limits | 20.4â¦26.4 V |
| Protection type | Power protection internal fuse |
| Maximum power consumption in W | 19 W base + 4 expension module |
| Inrush current | 1 A transistor output 50 A power supply |
| Insulation resistance | > 10 MOhm at 500 V, between I/O and earth terminals > 10 MOhm at 500 V, between supply and earth terminals |
| Program memory | 3000 instructions 6000 instructions with 64 K memory cartridge |
| Exact time for 1 Kinstruction | 1 ms |
| System overhead | 0.5 ms |
| Memory description | Internal RAM, 128 counters, no floating, no trigonometrical Internal RAM, 128 timers, no floating, no trigonometrical Internal RAM, 256 internal bits, no floating, no trigonometrical Internal RAM, 3000 internal words, no floating, no trigonometrical Internal RAM, double words, no floating, no trigonometrical Internal RAM, floating, trigonometrical |
| Battery type | Lithium internal RAM 30 days 15 h 10 year(s) |
| Integrated connection type | Power supply Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII RS485) half duplex, 38.4 kbit/s |
| Counting input number | 2 20000 Hz 32 bits 2 5000 Hz 16 bits |
| Positioning functions | PWM/PLS 2 7 kHz |
| Analogue input number | 1 |
| Analogue input range | 0...10 V |
| Analogue input resolution | 9 bits |
| Input impedance | 100000 Ohm |
| Complementary function | Event processing PID |
| Analogue adjustment points | 1 point adjustable from 0...1023 |
| Status LED | 1 LED ERR 1 LED STAT 1 LED (Green) PWR 1 LED (Green) RUN 1 LED per channel I/O status |
| CAD overall width | 1.9 in (48 mm) |
| CAD overall height | 3.7 in (95 mm) |
| CAD overall depth | 2.8 in (70 mm) |
| Terminals description PLC n°1 | (6)IN_DIS#6 (5)IN_DIS#5 (2)IN_DIS#2 (3)IN_DIS#3 TB_1 (9)IN_DIS#9 ALT (11)IN_DIS#11 (10)IN_DIS#10 (8)IN_DIS#8 (COM)COM_NEG#0-11 (7)IN_DIS#7 (0)IN_DIS#0 (4)IN_DIS#4 (1)IN_DIS#1 |
| Terminals description PLC n°2 | (11)IN_DIS#11 (5)IN_DIS#5 (4)IN_DIS#4 ALT_1 (1)IN_DIS#1 (2)IN_DIS#2 (9)IN_DIS#9 (7)IN_DIS#7 (6)IN_DIS#6 (8)IN_DIS#8 (10)IN_DIS#10 TB_1 (0)IN_DIS#0 (3)IN_DIS#3 (COM)COM_POS#0-11 |
| Terminals description PLC n°3 | (3)OUT_DIS#3 (1)OUT_DIS#1 (V-)PW_NEG TB_2 (4)OUT_DIS#4 (COM0)COM0_POS#0-1 (5)OUT_DIS#5 (7)OUT_DIS#7 (6)OUT_DIS#6 (0)OUT_DIS#0 (COM1)COM1#2-4 (2)OUT_DIS#2 (NC)UNUSED (COM2)COM2#5-6 (COM3)COM3#7 |
| Product Weight | 0.408 lb(US) (0.185 kg) |
This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Momentum automation platform |
| Product or Component Type | Analogue input base |
| Analogue input number | 16 |
| Analogue Input Type | Single ended |
| Analogue Input Range | 4...20 mA 12 bits < 0.25 Ohm +/- 10 V 12 bits + sign > 2200 kOhm +/- 5 V 12 bits + sign > 2200 kOhm |
| Type of filter | Low pass input filter 10 kHz |
Complementary
| Characteristic | Value(s) |
|---|---|
| Data format | Full 16 bits signed |
| Absolute accuracy error | +/- 0.15 % of full scale 77 °F (25 °C) +/- 10 V +/- 0.15 % of full scale 77 °F (25 °C) +/- 5 V +/- 0.25 % full scale 77 °F (25 °C) 4...20 mA +/- 0.25 % full scale 140 °F (60 °C) +/- 10 V +/- 0.25 % full scale 140 °F (60 °C) +/- 5 V +/- 0.45 % full scale 140 °F (60 °C) 4...20 mA |
| Temperature drift | 30 %oFS/°C +/- 10 V 140 °F (60 °C) 30 %oFS/°C +/- 5 V 140 °F (60 °C) 60 %oFS/°C 4...20 mA 140 °F (60 °C) |
| Full scale | 10 V +/- 10 V 16 mA 4...20 mA 5 V +/- 5 V |
| Update time | 25 ms |
| Isolation between channels and ground | 1780 V AC for 1 minute |
| Isolation between supply and ground | 500 V for 1 minute |
| Permissible common mode voltage | 100 V 47...63 Hz DC between channels to ground 250 V 47...63 Hz AC between channels to ground |
| External power requirement | +/- 30 V DC |
| Maximum power dissipation in W | 5.55 W |
| Reverse polarity protection | Internal |
| Protection type | Internal 2 A slow-blow |
| Associated fuse rating | 500 mA, fast blow |
| Marking | CE |
| Local signalling | 16 LEDs for channel status |
| Electrical connection | 2 connectors for removable terminal blocks |
| Current consumption | 305 mA 24 V DC |
| Depth | 1.9 in (47.5 mm) |
| Height | 4.9 in (125 mm) |
| Width | 5.6 in (141.5 mm) |
| Product Weight | 0.474 lb(US) (0.215 kg) |
7"W touch panel display, 2COM, 2Ethernet, USB host&device, 24VDC

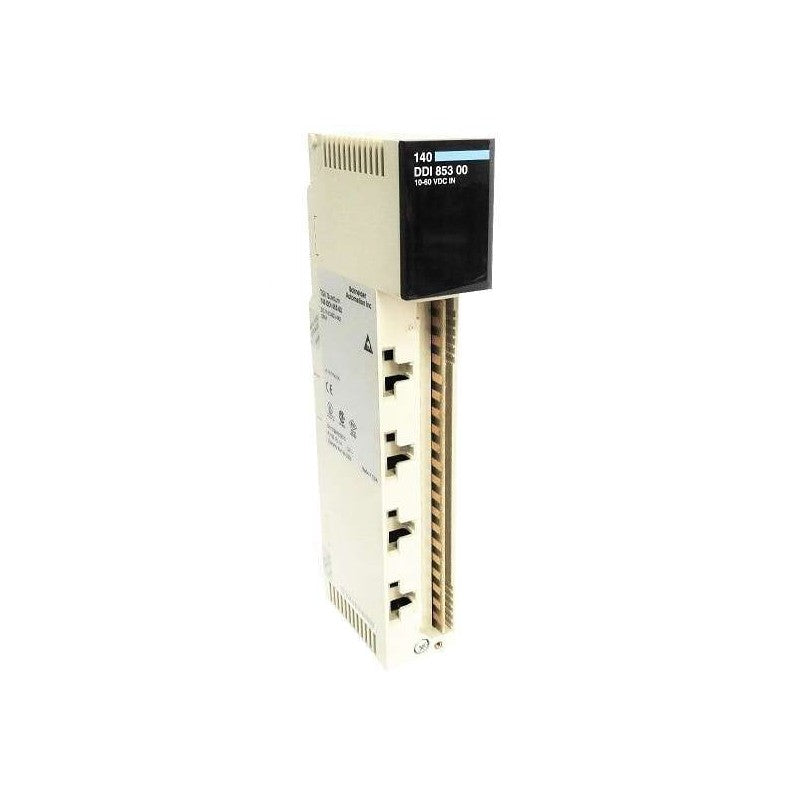

Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Dc discrete input modules |
| Discrete input number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 |
| Logic input | Positive (sink) |
| Input voltage limits | 10...60 V |
| Input voltage | 12 V 5â¦10 mA DC 24 V 6â¦30 mA DC 48 V 2â¦15 mA DC 60 V 1â¦5 mA DC |
| Voltage state 1 guaranteed | 9...12 V 12 V +/- 5 % 11...24 V 24 V - 15...20 % 34...48 V 48 V - 15...20 % 45...60 V 60 V - 15...20 % |
| Voltage state 0 guaranteed | 0...1.8 V 12 V +/- 5 % 0...10 V 48 V - 15...20 % 0...12.5 V 60 V - 15...20 % 0...5 V 24 V - 15...20 % |
| Absolute maximum voltage | 75 V |
| Addressing requirement | 2 input words |
| Response Time | 4 ms from state 0 to state 1 4 ms from state 1 to state 0 |
| Switching frequency | <= 100 Hz |
| Isolation between group and bus | 2500 Vrms DC for 1 minute |
| Isolation between group | 700 Vrms DC for 1 minute |
| Power dissipation | 1 W + (0.25 x number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 32 LEDs (green) for input status |
| Bus current requirement | 300 mA |
| Module format | Standard |
| Product Weight | 0.650 lb(US) (0.295 kg) |
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Dc discrete input modules |
| Discrete input number | 32 |
Complementary
| Characteristic | Value(s) |
|---|---|
| Group of channels | 4 |
| Logic input | Positive (sink) |
| Input voltage limits | 10...60 V |
| Input voltage | 12 V 5â¦10 mA DC 24 V 6â¦30 mA DC 48 V 2â¦15 mA DC 60 V 1â¦5 mA DC |
| Voltage state 1 guaranteed | 9...12 V 12 V +/- 5 % 11...24 V 24 V - 15...20 % 34...48 V 48 V - 15...20 % 45...60 V 60 V - 15...20 % |
| Voltage state 0 guaranteed | 0...1.8 V 12 V +/- 5 % 0...10 V 48 V - 15...20 % 0...12.5 V 60 V - 15...20 % 0...5 V 24 V - 15...20 % |
| Absolute maximum voltage | 75 V |
| Addressing requirement | 2 input words |
| Response Time | 4 ms from state 0 to state 1 4 ms from state 1 to state 0 |
| Switching frequency | <= 100 Hz |
| Isolation between group and bus | 2500 Vrms DC for 1 minute |
| Isolation between group | 700 Vrms DC for 1 minute |
| Power dissipation | 1 W + (0.25 x number of points on) |
| Marking | CE |
| Local signalling | 1 LED (green) for bus communication is present (Active) 32 LEDs (green) for input status |
| Bus current requirement | 300 mA |
| Module format | Standard |
| Product Weight | 0.650 lb(US) (0.295 kg) |

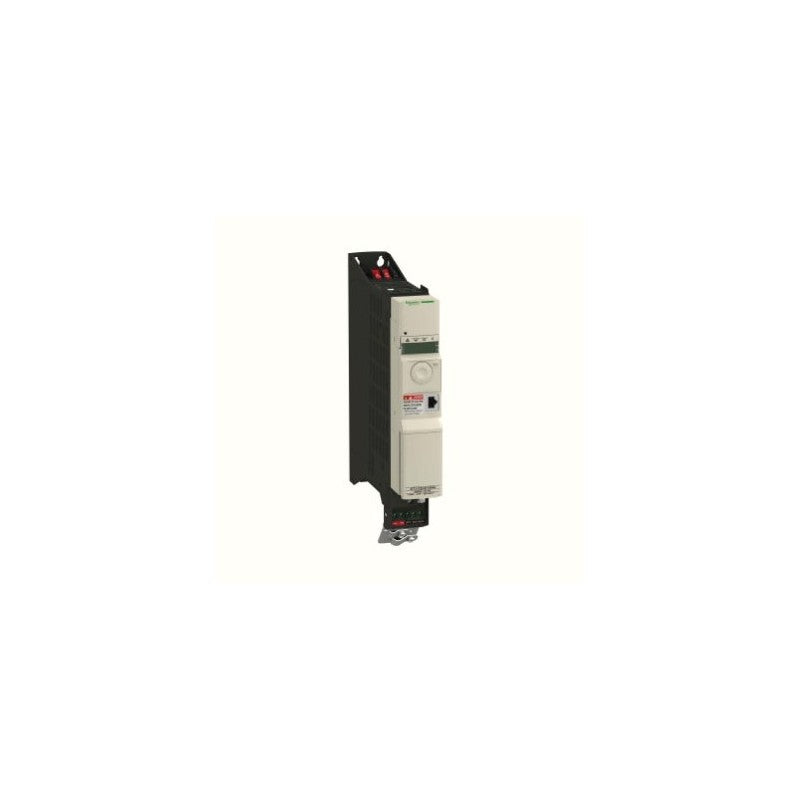

Variable Speed Drive Altivar ATV32 - 0.75 kw - 400 V - 3 Phase - with Heat Sink

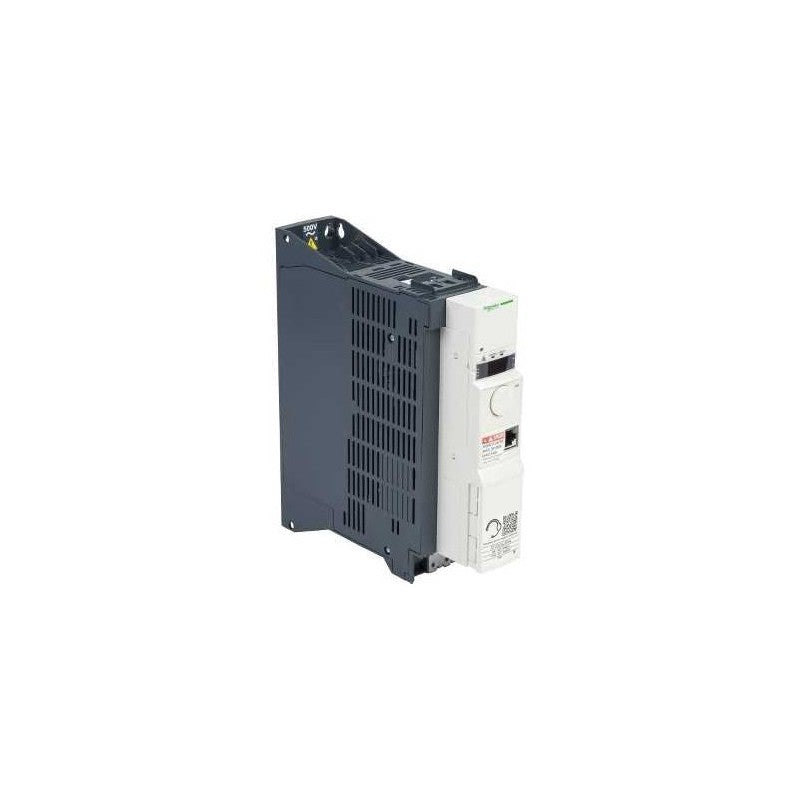

This Altivar 32 3-phase variable speed drive has a rated power of 2.2kW, and a supply voltage of 380V to 500V AC. It is designed for applications such as small conveyors, hoists, bagging / labeling machines, mixers, kneaders, textile machines, pumps, compressors, fans, wood-working and metal processing machines. It has a 60mm-wide book form-factor, allowing for a flexible and easy installation on a mounting plate without any space between adjacent drives. It also offers a snap-lock seal, status and faults display, a jog dial navigation button and an integrated EMC filter. It offers high readability of key parameters thanks to a bright LED 4-digit display. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Altivar 32 |
| Product or Component Type | Variable speed drive |
| Product destination | Synchronous motors Asynchronous motors |
| Product Specific Application | Complex machines |
| Function Available | - |
| Assembly style | With heat sink |
| Component name | ATV32 |
| EMC filter | Class C2 EMC filter integrated |
| Phase | 3 phase |
| [Us] rated supply voltage | 380...500 V - 15...10 % |
| Supply voltage limits | 323â¦550 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network Frequency | 47.5...63 Hz |
| Motor power kW | 2.2 kW 380...480 V |
| Maximum Horse Power Rating | 3 hp 380...480 V |
Complementary
| Characteristic | Value(s) |
|---|---|
| Line current | 6.6 A 500 V 3 phase 2.2 kW / 3 hp 8.7 A 380 V 3 phase 2.2 kW / 3 hp |
| Apparent power | 5.7 kVA 500 V 3 phase 2.2 kW / 3 hp |
| Prospective line Isc | 5 kA 3 phase |
| Nominal output current | 5.5 A 4 kHz 500 V 2.2 kW / 3 hp |
| Maximum transient current | 8.3 A 60 s 2.2 kW / 3 hp |
| Output frequency | 0.0005â¦0.599 kHz |
| Nominal switching frequency | 4 kHz |
| Switching frequency | 2...16 kHz adjustable |
| Speed range | 1â¦100 asynchronous motor in open-loop mode |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Torque accuracy | +/- 15 % |
| Transient overtorque | 170â¦200 % |
| Braking torque | <= 170 % with braking resistor |
| Asynchronous motor control profile | Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard Voltage/frequency ratio, 5 points Flux vector control without sensor - Energy Saving, NoLoad law Voltage/frequency ratio, 2 points |
| Synchronous motor control profile | Vector control without sensor |
| Regulation loop | Adjustable PID regulator |
| Motor slip compensation | Adjustable 0...300 % Not available in voltage/frequency ratio (2 or 5 points) Automatic whatever the load |
| Local signalling | 1 LED red drive voltage 1 LED green CANopen run 1 LED red CANopen error 1 LED red drive fault |
| Output voltage | <= power supply voltage |
| Noise level | 43 dB 86/188/EEC |
| Insulation | Electrical between power and control |
| Electrical connection | Screw terminal 0.5...1.5 mm², AWG 18...AWG 14 control) Removable screw terminals 1.5...2.5 mm², AWG 14...AWG 12 motor/braking resistor) Screw terminal 1.5...4 mm², AWG 14...AWG 10 power supply) |
| Tightening torque | 4.4 lbf.in (0.5 N.m), 4.4 lb/ft control) 6.2 lbf.in (0.7 N.m), 7.1 lb/ft motor/braking resistor) 5.3 lbf.in (0.6 N.m), 5.3 lb/ft power supply) |
| Supply | Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection |
| Analogue input number | 3 |
| Analogue input type | AI1 voltage 0...10 V DC 30000 Ohm 10 bits AI2 bipolar differential voltage +/- 10 V DC 30000 Ohm 10 bits AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits |
| Sampling duration | 2 ms AI1, AI2, AI3) - analog 2 ms AO1) - analog |
| Response time | LI1...LI6 8 ms +/- 0.7 ms logic R1A, R1B, R1C 2 ms relay R2A, R2C 2 ms relay |
| Accuracy | +/- 0.2 % AI1, AI2, AI3) for a temperature of -10...60 °C +/- 0.5 % AI1, AI2, AI3) for a temperature of 25 °C +/- 1 % AO1) for a temperature of 25 °C +/- 2 % AO1) for a temperature of -10...60 °C |
| Linearity error | +/- 0.2...0.5 % of maximum value AI1, AI2, AI3) +/- 0.3 % AO1) |
| Analogue output number | 1 |
| Analogue output type | AO1 software-configurable current 0...20 mA 800 Ohm 10 bits AO1 software-configurable voltage 0...10 V 470 Ohm 10 bits |
| Discrete output number | 3 |
| Discrete output type | Configurable relay logic R1A, R1B, R1C) NO/NC - 100000 cycles Configurable relay logic R2A, R2B) NO - 100000 cycles Logic LO) |
| Minimum switching current | 5 mA 24 V DC configurable relay logic |
| Maximum switching current | R1 3 A 250 V AC resistive, cos phi = 1 R1 4 A 30 V DC resistive, cos phi = 1 R1, R2 2 A 250 V AC inductive, cos phi = 0.4 R1, R2 2 A 30 V DC inductive, cos phi = 0.4 R2 5 A 250 V AC resistive, cos phi = 1 R2 5 A 30 V DC resistive, cos phi = 1 |
| Discrete input number | 7 |
| Discrete input type | Programmable (sink/source) LI1...LI4)24...30 V DC level 1 PLC Programmable as pulse input 20 kpps LI5)24...30 V DC level 1 PLC Switch-configurable PTC probe LI6)24...30 V DC Safe torque off STO)24...30 V DC - 1500 Ohm |
| Discrete input logic | Negative logic (sink) LI1...LI6), > 19 V, < 13 V Positive logic (source) LI1...LI6), < 5 V, > 11 V |
| Acceleration and deceleration ramps | S CUS Linear Deceleration ramp adaptation Ramp switching Deceleration ramp automatic stop DC injection U |
| Braking to standstill | By DC injection |
| Protection type | Input phase breaks drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection drive |
| Communication Port Protocol | Modbus CANopen |
| Connector type | 1 RJ45 on front face)Modbus/CANopen |
| Physical interface | 2-wire RS 485 Modbus |
| Transmission frame | RTU Modbus |
| Type of polarization | No impedance Modbus |
| Number of addresses | 1â¦127 CANopen 1â¦247 Modbus |
| Method of access | Slave CANopen |
| Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test, level 3 IEC 61000-4-5 Conducted radio-frequency immunity test, level 3 IEC 61000-4-6 Electrical fast transient/burst immunity test, level 4 IEC 61000-4-4 Electrostatic discharge immunity test, level 3 IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test, level 3 IEC 61000-4-3 Voltage dips and interruptions immunity test IEC 61000-4-11 |
| Width | 2.4 in (60 mm) |
| Height | 12.8 in (325 mm) |
| Depth | 9.6 in (245 mm) |
| Product Weight | 6.6 lb(US) (3 kg) |
| Option card | Communication card CANopen daisy chain Communication card CANopen open style Communication card DeviceNet Communication card EtherNet/IP Communication card Profibus DP V1 |
| Functionality | Mid |
| Specific application | Other applications |
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90â¦264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Number output current | 0.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 16 event tasks 1 master task 1 fast task |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | Modular base controller |
| Primary voltage | 100...240 V 90â¦264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Number output current | 0.5 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With |
| Memory description | Flash 15 Kwords data Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 128 %KWi constant words 256 %Mi 1 %MWi internal words |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card 4.5 µs arithmetic REAL floating without PCMCIA card 0.19 µs Boolean with PCMCIA card 4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 16 event tasks 1 master task 1 fast task |
| System overhead | 1.6 ms for master task |
| Protection type | Overload protection Short-circuit |
| Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge conforming to IEC 1000-4-2 level 3 Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3 Resistance to fast transient conforming to IEC 1000-4-4 level 3 Immunity to impulse waves conforming to IEC 1000-4-5 Damped oscillatory wave conforming to IEC 1000-4-12 Immunity to electromagnetic interference conforming to IEC 61131-2 |
When it comes to maximizing your industrial automation capabilities, it’s important that you utilize products from a brand that puts this need at the top of the priority list. Schneider PLCs are a leading product line in the manufacturing world thanks to its advanced automation solutions and constant innovation. Schneider Electric parts can save you time and money while optimizing your equipment in the best possible ways. Schneider PLCs are also incredibly customizable, with ample ways to adjust your system to best correspond to your unique equipment setup.
We at PLC Direct offer a series of these Schneider Electric PLCs, including outdated models, to ensure that you have access to the exact products you need. So whether you’re running a newer or an older model, you can rest assured that we have something that’ll help you replace or repair your existing system. This way, you won’t need to perform a full overhaul of your automation devices before you’re good and ready to. Additionally, we make it a point to be transparent about Schneider spare part availability so that you always know the potential lead times. Shop below to learn more about this as well as our other industrial automation products for sale. We’ll be your number one resource for all your PLC needs.
We at PLC Direct offer a series of these Schneider Electric PLCs, including outdated models, to ensure that you have access to the exact products you need. So whether you’re running a newer or an older model, you can rest assured that we have something that’ll help you replace or repair your existing system. This way, you won’t need to perform a full overhaul of your automation devices before you’re good and ready to. Additionally, we make it a point to be transparent about Schneider spare part availability so that you always know the potential lead times. Shop below to learn more about this as well as our other industrial automation products for sale. We’ll be your number one resource for all your PLC needs.
