PLC Systems

220 products

Showing 145 - 168 of 220 products

Showing 145 - 168 of 220 products
View
2TLA010033R3000 ABB - BT51T 24DC
ABB 2TLA010033R3000 ABB - BT51T 24DC
$404.97
Only 5 units left

Safety relay, BT51T 24DC Safety relay

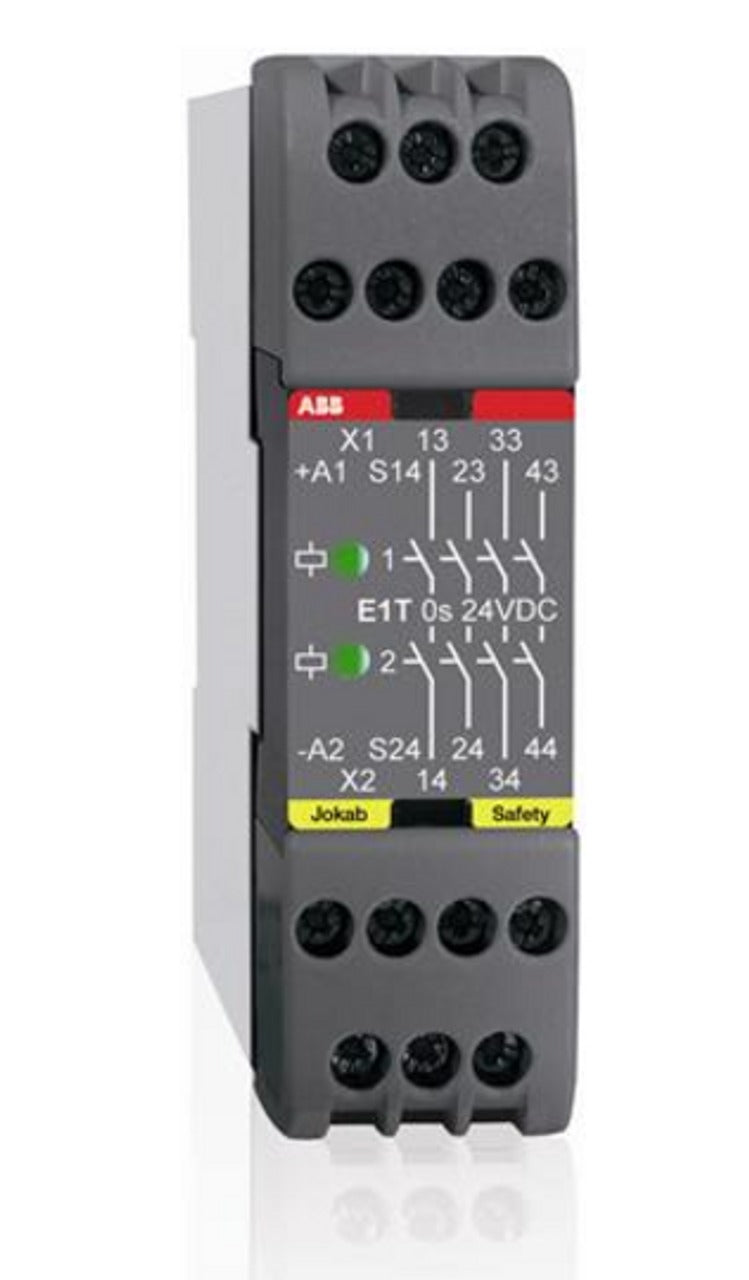

2TLA010030R5000 ABB - E1T 3s 24DC
ABB 2TLA010030R5000 ABB - E1T 3s 24DC
$1,504.23
Only 1 unit left

SAFETY EXPANSION RELAY, E1T 3S, TIME DELAY 3 SEC, RELAY OUTPUTS 4NO, 24VDC

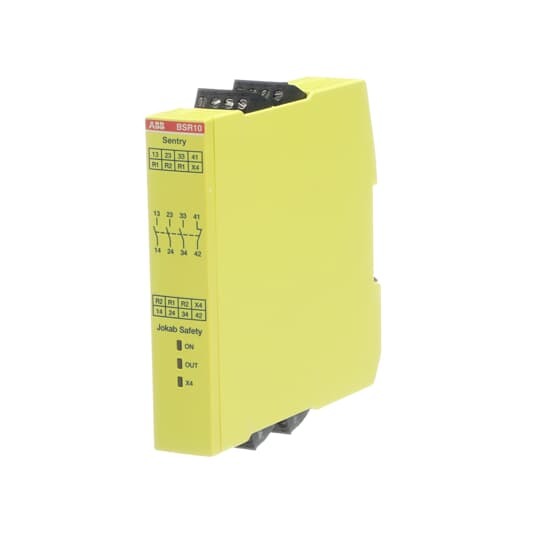

2TLA010040R0000 ABB - Sentry BSR10
ABB 2TLA010040R0000 ABB - Sentry BSR10
$341.67
Only 4 units left

Ordering

EAN:
7350024483253
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.19 kg

Technical

Function:
Expansion relay - No monitoring of two channel fault
Sub-Function:
Start/test input
Timer Relay Type:
No Time Delay
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.251 kg
Package Level 1 EAN:
7350024483253
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
9.3 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712519
E-Number (Sweden):
3860816

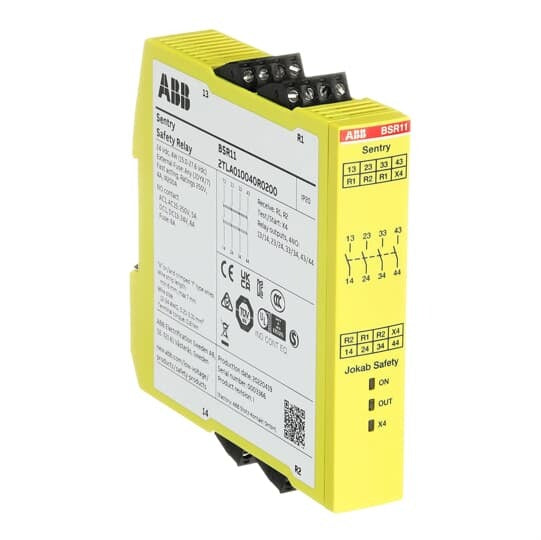

2TLA010040R0200 ABB - Sentry BSR11
ABB 2TLA010040R0200 ABB - Sentry BSR11
$355.46
Only 2 units left

Ordering

EAN:
7350024483260
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.19 kg

Technical

Function:
Expansion relay - No monitoring of two channel fault
Sub-Function:
Start/test input
Timer Relay Type:
No Time Delay
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.251 kg
Package Level 1 EAN:
7350024483260
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
9.3 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712520
E-Number (Sweden):
3860817

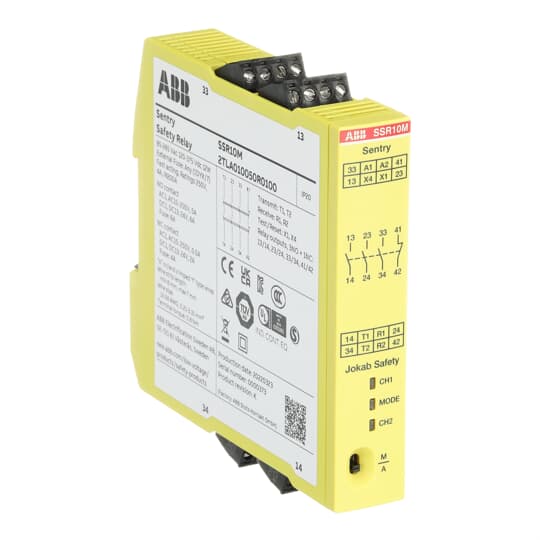

2TLA010050R0100 ABB - Sentry SSR10M
ABB 2TLA010050R0100 ABB - Sentry SSR10M
$337.43
Only 4 units left

Ordering

EAN:
7350024483291
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.214 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, Manual/Auto reset selectable by switch
Timer Relay Type:
No Time Delay
Rated Control Supply Voltage (Us):
120 ... 375 V DC
85 ... 265 V AC
120 ... 375 V DC
85 ... 265 V AC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.275 kg
Package Level 1 EAN:
7350024483291
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.2 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712523
E-Number (Sweden):
3860820

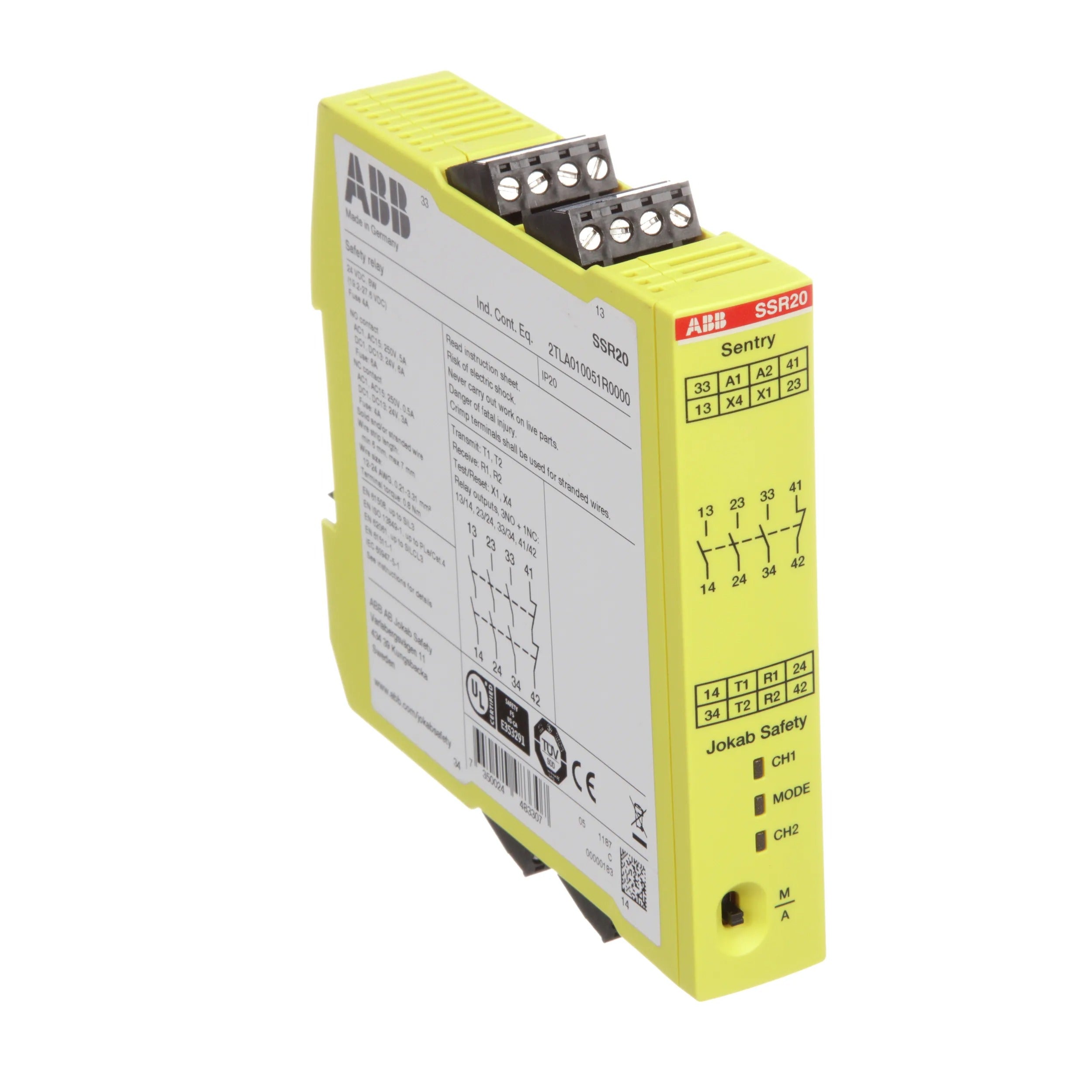

2TLA010051R0000 ABB - Sentry SSR20
ABB 2TLA010051R0000 ABB - Sentry SSR20
$971.41
Only 4 units left

Ordering

EAN:
7350024483307
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.207 kg

Technical

Function:
Safety relay for monitoring of two-hand devices
Sub-Function:
Start/test input, Manual/Auto reset selectable by switch
Timer Relay Type:
No Time Delay
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.268 kg
Package Level 1 EAN:
7350024483307
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
9.9 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001452 - Two-hand control relay
ETIM 8:
EC001452 - Two-hand control relay
ETIM 9:
EC001452 - Two-hand control relay
eClass:
V11.0 : 27371821
UNSPSC:
39122331
E-Number (Finland):
2712524
E-Number (Sweden):
3860821

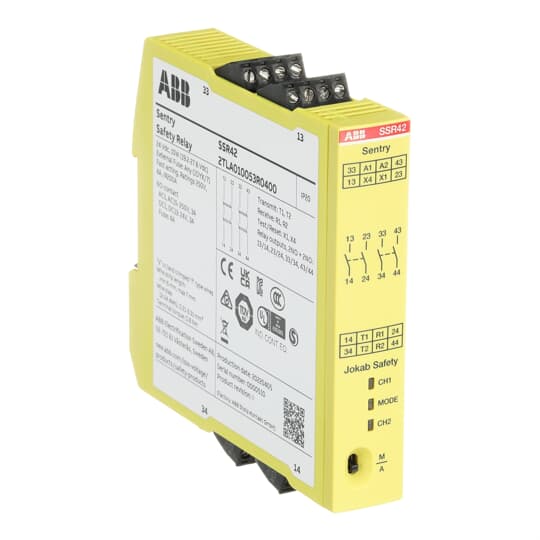

2TLA010053R0400 ABB - Sentry SSR42
ABB 2TLA010053R0400 ABB - Sentry SSR42
$552.18
Only 2 units left

Ordering

EAN:
7350024483338
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.207 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, Manual/Auto reset selectable by switch
Timer Relay Type:
OFF-Delay
Time Range:
1.5 seconds
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
3 A
Rated Operational Current DC-13 (Ie):
3 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.268 kg
Package Level 1 EAN:
7350024483338
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
9.9 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712527
E-Number (Sweden):
3860824
2TLA010052R0400 ABB - Sentry SSR32
ABB 2TLA010052R0400 ABB - Sentry SSR32
$602.53
Only 2 units left

Ordering

EAN:
7350024483321
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.207 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, Manual/Auto reset selectable by switch
Timer Relay Type:
OFF-Delay
Time Range:
0.5 second
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
3 A
Rated Operational Current DC-13 (Ie):
3 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.268 kg
Package Level 1 EAN:
7350024483321
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
9.9 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712526
E-Number (Sweden):
3860823

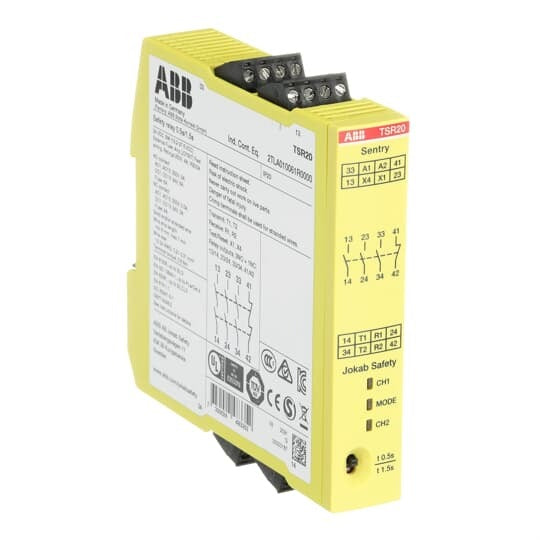

2TLA010061R0000 ABB - Sentry TSR20
ABB 2TLA010061R0000 ABB - Sentry TSR20
$710.10
Only 1 unit left

Ordering

EAN:
7350024483352
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.207 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, Auto reset only, Time delay selectable by switch
Timer Relay Type:
OFF-Delay
Time Range:
0.5 and 1.5 seconds
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.268 kg
Package Level 1 EAN:
7350024483352
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
9.9 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712529
E-Number (Sweden):
3860826
2TLA010070R0000 ABB - Sentry USR10
ABB 2TLA010070R0000 ABB - Sentry USR10
$735.08
Only 5 units left

Ordering

EAN:
7350024483376
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.229 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, configurable Manual/Auto reset and Timer, Display (error indication and error log)
Timer Relay Type:
Multifunction
Time Range:
0 ... 999 seconds
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.29 kg
Package Level 1 EAN:
7350024483376
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.7 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712531
E-Number (Sweden):
3860828

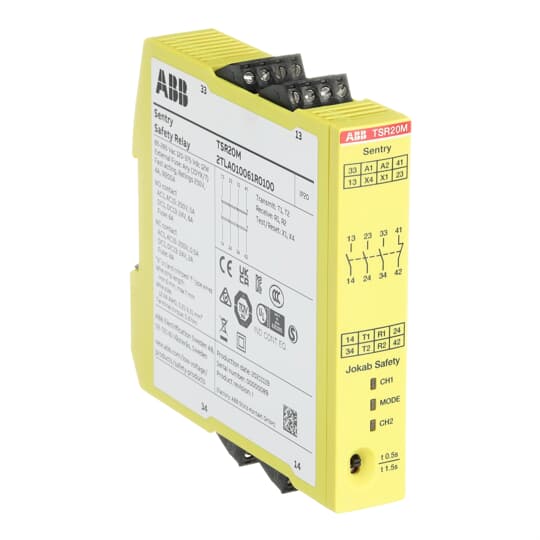

2TLA010061R0100 ABB - Sentry TSR20M
ABB 2TLA010061R0100 ABB - Sentry TSR20M
$0.00
Sold Out

Ordering

EAN:
7350024483369
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.214 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, Auto reset only, Time delay selectable by switch
Timer Relay Type:
OFF-Delay
Time Range:
0.5 and 1.5 seconds
Rated Control Supply Voltage (Us):
120 ... 375 V DC
85 ... 265 V AC
120 ... 375 V DC
85 ... 265 V AC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.275 kg
Package Level 1 EAN:
7350024483369
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.2 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712530
E-Number (Sweden):
3860827

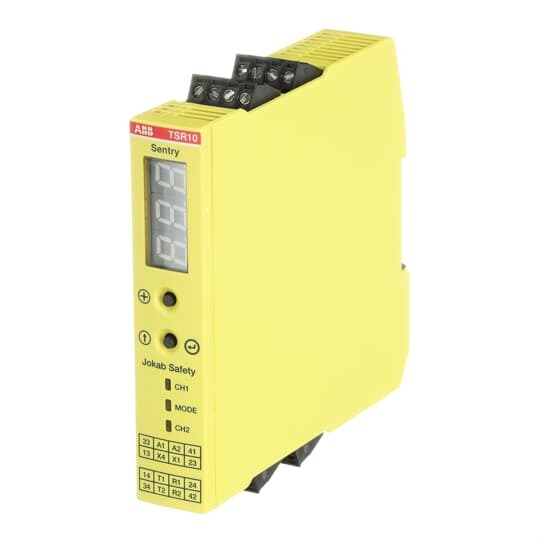

2TLA010060R0000 ABB - Sentry TSR10
ABB 2TLA010060R0000 ABB - Sentry TSR10
$872.10
Only 5 units left

Ordering

EAN:
7350024483345
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
22.5 mm
Product Net Height:
120 mm
Product Net Depth / Length:
120 mm
Product Net Weight:
0.213 kg

Technical

Function:
Safety relay for monitoring of safety devices
Sub-Function:
Start/test input, configurable Manual/Auto reset and Timer, Display (error indication and error log)
Timer Relay Type:
Multifunction
Time Range:
0 ... 999 seconds
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Current AC-15 (Ie):
5 A
Rated Operational Current DC-13 (Ie):
6 A
Degree of Protection:
IP20
Connecting Capacity:
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Crimped Pin 1x0.2...3.3 mm²
Crimped Pin 2x0.2...1.5 mm²
Flexible with Ferrule 1x0.2...3.3 mm²
Flexible with Ferrule 2x0.2...1.5 mm²
Solid 1x0.2...3.3 mm²
Solid 2x0.2...1.5 mm²
Tightening Torque:
0.7 N·m
Wire Stripping Length:
6.5 mm
Recommended Screw Driver:
M3.5
Mounting on DIN Rail:
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards:
IS0 13849

Technical UL/CSA

Connecting Capacity UL/CSA:
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG
Crimped Pin 1x 24-12 AWG
Crimped Pin 2x 24-16 AWG
Flexible with Ferrule 1x 24-12 AWG
Flexible with Ferrule 2x 24-16 AWG
Solid 1x 24-12 AWG
Solid 2x 24-16 AWG

Environmental

Ambient Air Temperature:
Operation -25 ... +65 °C
Storage -40 ... +70 °C
Operation -25 ... +65 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
125 mm
Package Level 1 Depth / Length:
31 mm
Package Level 1 Height:
129 mm
Package Level 1 Gross Weight:
0.274 kg
Package Level 1 EAN:
7350024483345
Package Level 2 Units:
36 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.2 kg

External Classifications and Standards

Object Classification Code:
K
ETIM 7:
EC001449 - Device for monitoring of safety-related circuits
ETIM 8:
EC001449 - Device for monitoring of safety-related circuits
ETIM 9:
EC001449 - Device for monitoring of safety-related circuits
eClass:
V11.0 : 27371819
UNSPSC:
39122331
E-Number (Finland):
2712528
E-Number (Sweden):
3860822
1SAP121000R0001 ABB - PM564-RP
ABB 1SAP121000R0001 ABB - PM564-RP
$966.63
Only 3 units left

Programmable Logic Controller PLC 128kB, 6DI/6DO-R/2AI/1AO, 24VDC, 1 x RS485, 2 x Option Slot

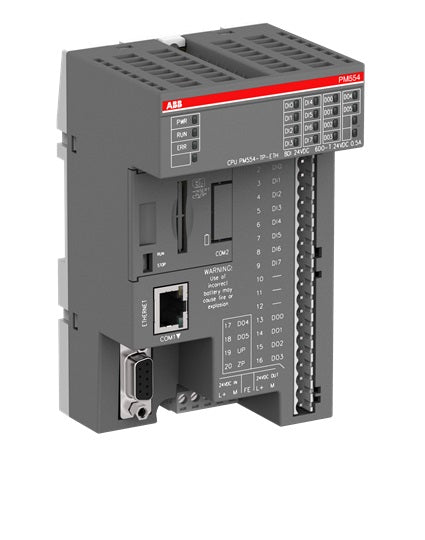

1SAP120600R0071 ABB - PM554-TP-ETH
ABB 1SAP120600R0071 ABB - PM554-TP-ETH
$417.26
Only 4 units left

CONTROLLER, 128 KB, 8 DIGITAL INPUTS /6 DIGITAL OUTPUTS, ETH, 24 VDC, 1XRS485,2X OPTION SLOT

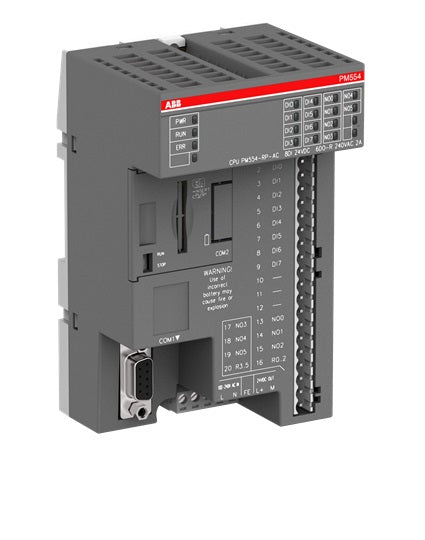

1SAP120800R0001 ABB - PM554-RP-AC
ABB 1SAP120800R0001 ABB - PM554-RP-AC
$0.00
Sold Out

AC500, Programmable Logic Controller , 128kB, 8DI/6DO-R, 115-230VAC, 1xRS485, 2xOption Slot

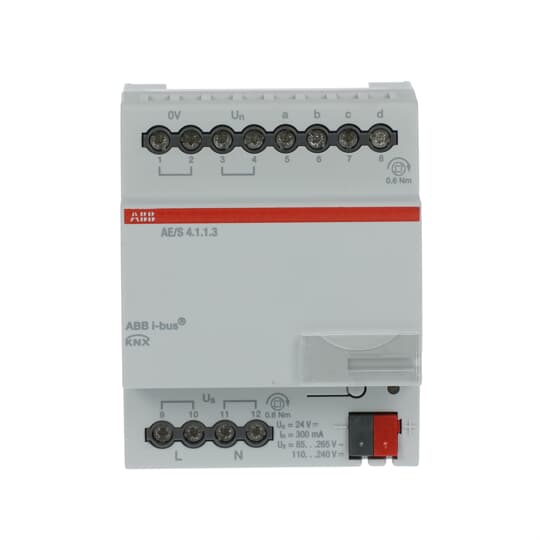

2CDG110190R0011 ABB - AE/S 4.1.1.3
ABB 2CDG110190R0011 ABB - AE/S 4.1.1.3
$0.00
Sold Out

Environmental

Degree of Protection:
IP20

Technical

Data Sheet, Technical Information:
Number of Inputs:
Analog (0 ... 10 V / 4 ... 20 mA) 4
Compatible Bus Systems:
KNX (TP)
Product Range:
KNX
Manual Operation:
No
Number of Batteries:
0

Electrical

Voltage Range:
110 ... 230 V AC
Auxiliary Voltage AC/DC:
230 V AC
Power Loss:
3 W

Design

Color:
light grey

Dimensions

Width in Number of Modular Spacings:
4.0
Product Net Width:
72 mm
Product Net Height:
90 mm
Product Net Depth / Length:
64.5 mm
Product Net Weight:
0.23 kg

Engineering

Ordering

E-Number (Finland):
2815536
E-Number (Norway):
4544201
E-Number (Sweden):
1738904
E-Number (Switzerland):
405631005

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20240123
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Consumer

Certificates and Declarations

Cyber Security Software Support Period:
2 year

External Classifications and Standards

ETIM 9:
EC000794 - Analogue input for bus system
ETIM 10:
EC000794 - Analogue input for bus system
eClass:
V11.0 : 27143107
Object Classification Code:
A
Standards:
DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007

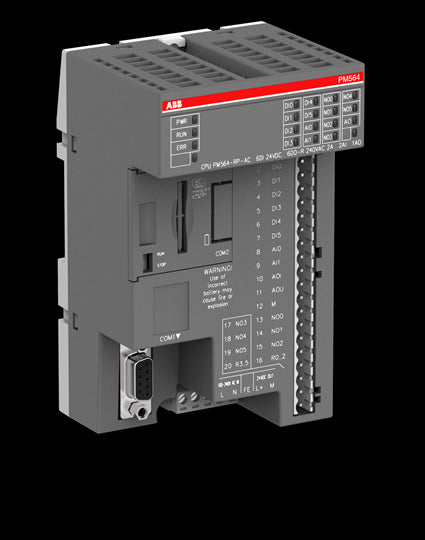

1TNE968900R1220 ABB - PM564-R-AC (limited)
ABB 1TNE968900R1220 ABB - PM564-R-AC (limited)
$391.50
Only 2 units left

Ordering

CN8:
85371091
Invoice Description:
PM564-R-AC:AC500,Prog.Logic Controller
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Selling Unit of Measure:
piece

Dimensions

Product Net Weight:
0.4 kg
Product Net Depth / Length:
135 mm
Product Net Height:
74 mm
Product Net Width:
82 mm
Gross Weight:
0.5 kg

Technical

Communication Interface:
Serial
Memory Size User Data:
10 kB
Memory Size User Program:
128 kB
Memory Type User Data:
Flash EPROM
Output Voltage (Uout):
24...230 V
Output Current:
2 A
Degree of Protection:
IP20
Ambient Air Temperature:
Operation 0 ... +60 °C
Storage -40 ... +70 °C
Operation 0 ... +60 °C
Storage -40 ... +70 °C

Additional Information

Product Main Type:
PM564
Product Name:
Distributed Automation PLCs

Environmental

WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

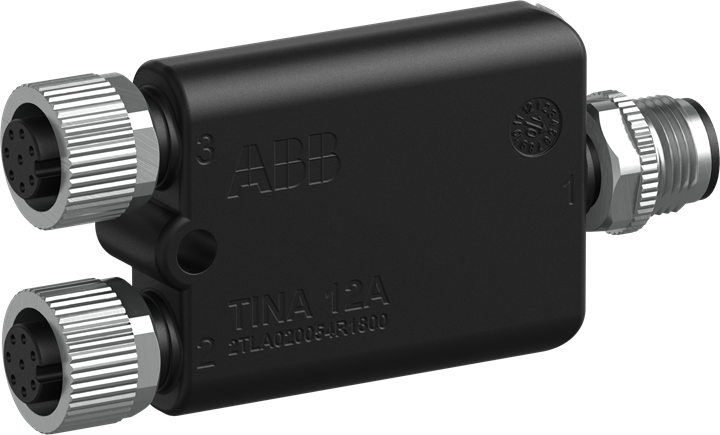

2TLA020054R1800 ABB - Tina 12A
ABB 2TLA020054R1800 ABB - Tina 12A
$0.00
Sold Out

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85369095
Product Main Type:
Tina
Product Name:
DYNlink connection accessory
Status Indicator:
Yes

Popular Downloads

Data Sheet, Technical Information:
Data Sheet, Technical Information (Part 2):
Instructions and Manuals:
EPLAN Data:

Dimensions

Product Net Depth / Length:
14 mm
Product Net Height:
35 mm
Product Net Width:
77 mm
Product Net Weight:
0.04 kg

Technical

Color:
Black
Rated Control Supply Voltage (Us):
24 V DC
Rated Operational Voltage:
24 V DC
Suitable For:
Pluto AS-i v2
Pluto A20 v2
Pluto B20 v2
Pluto B22
Pluto B42 AS-i
Pluto B46 v2
Pluto D20
Pluto D45
Pluto D45 (Harsh Env)
Pluto O2
Pluto S20 v2
Pluto S46 v2
Vital 1
B&R X20
Pluto AS-i v2
Pluto A20 v2
Pluto B20 v2
Pluto B22
Pluto B42 AS-i
Pluto B46 v2
Pluto D20
Pluto D45
Pluto D45 (Harsh Env)
Pluto O2
Supply Voltage:
24 V DC

Environmental

Ambient Air Temperature:
Operation -10 ... 55 °C
Degree of Protection:
IP67
Material:
Plastic

Material Compliance

Conflict Minerals Reporting Template (CMRT):
REACH Declaration:
RoHS Information:
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

Declaration of Conformity - CE:
Declaration of Conformity - UKCA:
TÜV Certificate:

Container Information

Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
60 mm
Package Level 1 Depth / Length:
90 mm
Package Level 1 Height:
0.015 m
Package Level 1 Gross Weight:
0.042 kg
Package Level 1 EAN:
7350024451986

External Classifications and Standards

eClass:
V11.0 : 27060313
ETIM 7:
EC001584 - I/O device for bus system
ETIM 8:
EC001584 - I/O device for bus system
ETIM 9:
EC003558 - Passive sensor-actuator interface (without cable)
IDEA Granular Category Code (IGCC):
5219 >> Switch part or accessory
UNSPSC:
39122221
Object Classification Code:
T
E-Number (Finland):
2307394
E-Number (Sweden):
3860126

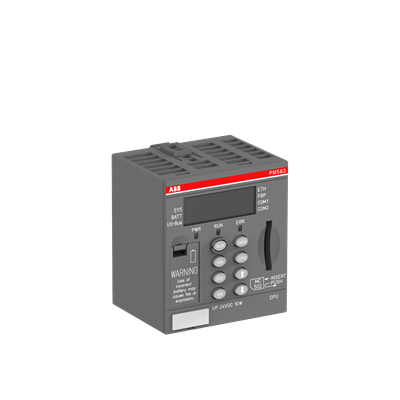

PM583-ETH ABB
ABB PM583-ETH ABB
$2,082.29
Only 7 units left

PM583-ETH: AC500 Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display.

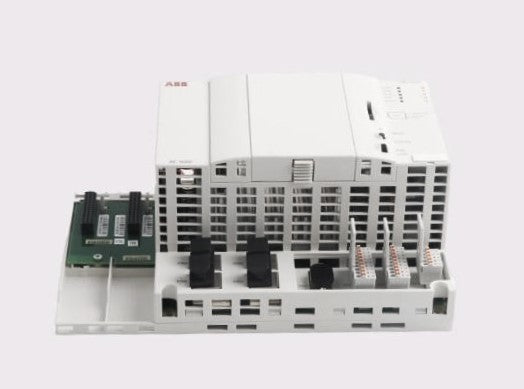

3BDH001000R0001 ABB - PM 902F
ABB 3BDH001000R0001 ABB - PM 902F
$10,848.87
Only 2 units left

Additional Information

Medium Description:
This CPU module is the medium base unit of the Freelance AC 900F controller family. Depending on the application, it is sufficient for around 1.500 IOs. 4 Ethernet interfaces, 800 MHz CPU clock, 24 MB Controller Memory, 8 MB battery buffered SRAM, 16 MB DRAM. 2 slots for assembling Communication Interface Modules. Needs external 24 VDC power supply. Software version see instruction leaflet 2PAA120973-003. Display Unit TD 951F and Battery TA 951F are not included.
Product Type:
Central_Unit

Ordering

HS Code:
853710 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Boards, panels, consoles, desks, cabinets and other bases, equipped with two or more apparatus of heading|8535|or 8536, for electric control or the distribution of electricity, including those incorporating instruments or apparatus of Chapter|90, and numerical control apparatus, other than switching apparatus of heading|8517;For a voltage not exceeding 1|000|V
Customs Tariff Number:
85371091

Dimensions

Product Net Depth / Length:
95 mm
Product Net Height:
152 mm
Product Net Width:
227 mm
Product Net Weight:
1.1 kg

Environmental

RoHS Information:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries:
0
SCIP:
No SVHC present United States

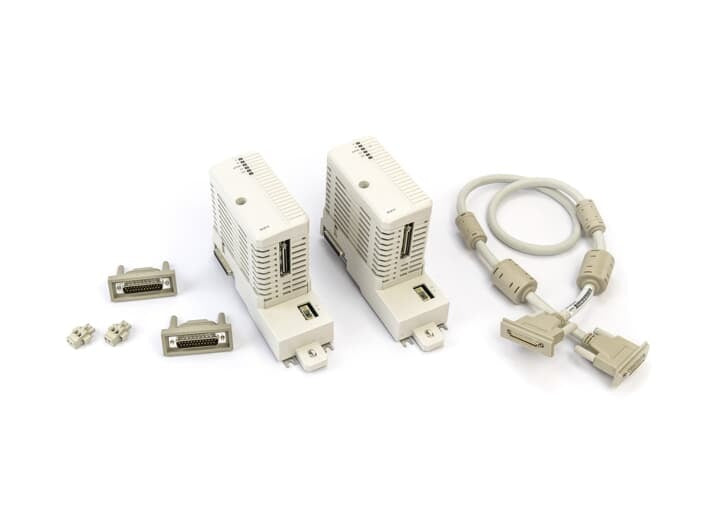

3BSE031155R1 ABB - BC810K02
ABB 3BSE031155R1 ABB - BC810K02
$2,820.44
Only 4 units left

Additional Information

Medium Description:
Including: - 2 pcs BC810, Interconnection Unit - 2 pcs TP857, Baseplate - TK851, Interconnection Cable - 2 pcs TB850, CEX-Bus Terminator
Product Type:
Communication_Module

Ordering

HS Code:
851762 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Telephone sets, including smartphones and other telephones for cellular networks or for other wireless networks; other apparatus for the transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network), other than transmission or reception apparatus of heading 8443, 8525, 8527 or 8528;Other apparatus for the transmission or reception of voice, images or other data, including apparatus for communication in a wired or wireless network (such as a local or wide area network);Machines for the reception, conversion and transmission or regeneration of voice, images or other data, including switching and routing apparatus
Customs Tariff Number:
85176200

Dimensions

Product Net Depth / Length:
127.5 mm
Product Net Height:
185 mm
Product Net Width:
59 mm
Product Net Weight:
1.55 kg

Environmental

RoHS Information:
Following EU Directive 2011/65/EU
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries:
0
SCIP:
6518e801-deaf-4796-9f19-b06356f613ec Sweden

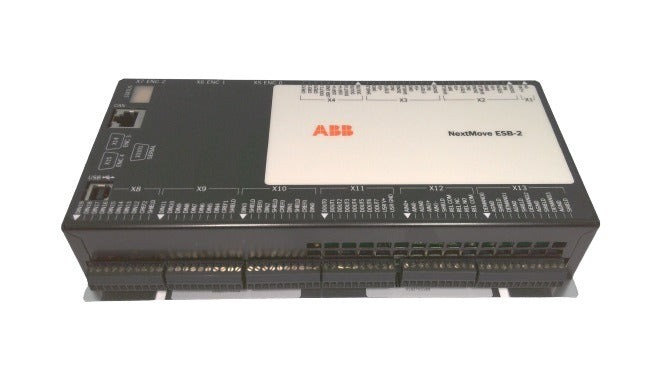

3AXD50000032685 ABB - NSB203-501W
ABB 3AXD50000032685 ABB - NSB203-501W
$0.00
Sold Out

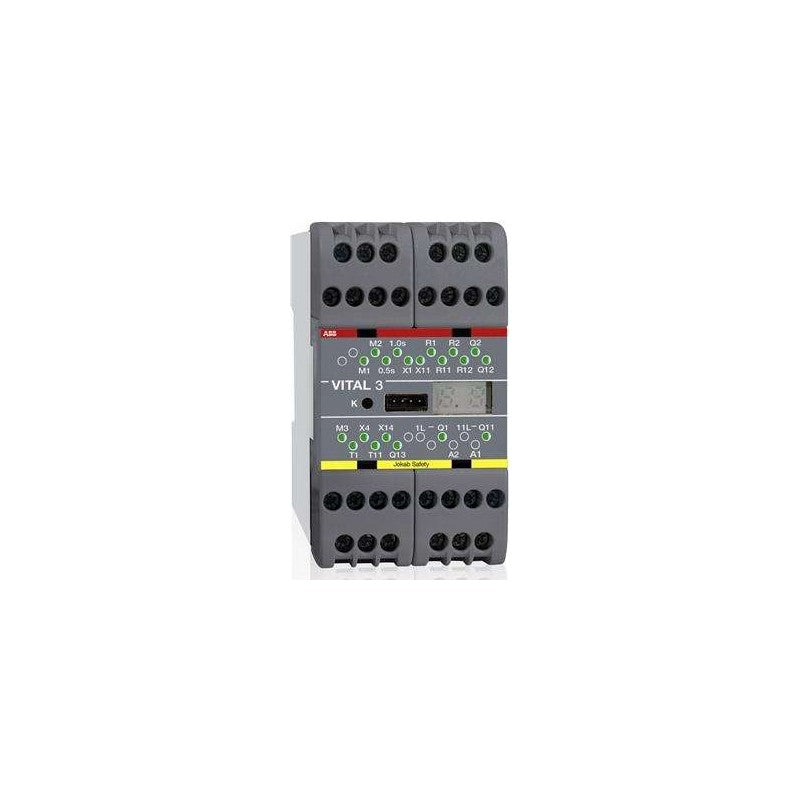

2TLA020070R4400 ABB
ABB 2TLA020070R4400 ABB
$0.00
Sold Out

Electronic safety relay, Vital 3 24V DC dynamic safety module

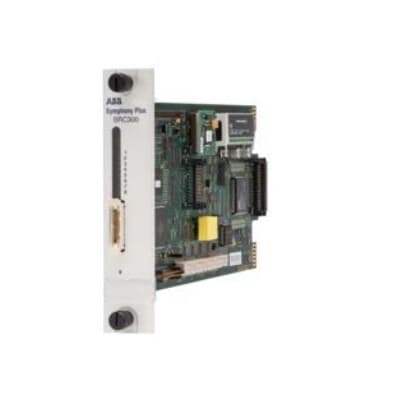

SPBRC410 ABB
ABB SPBRC410 ABB
$2,525.78
Only 5 units left

Additional Information

Product Type:
Central_Unit

Ordering

HS Code:
853710 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Boards, panels, consoles, desks, cabinets and other bases, equipped with two or more apparatus of heading|8535|or 8536, for electric control or the distribution of electricity, including those incorporating instruments or apparatus of Chapter|90, and numerical control apparatus, other than switching apparatus of heading|8517;For a voltage not exceeding 1|000|V
Customs Tariff Number:
85371091

Dimensions

Product Net Depth / Length:
101.6 mm
Product Net Height:
254 mm
Product Net Width:
203.2 mm
Product Net Weight:
0 kg

Environmental

WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries:
1
Battery Chemical Composition:
Lithium
Battery Type:
Button Cell
Battery Weight:
5 g
SCIP:
98b11c33-bf0a-4725-a050-02b0fc938049 Malta

Recently viewed
