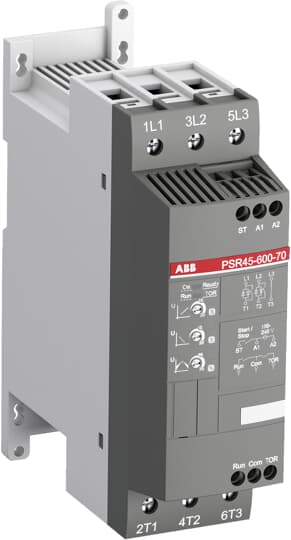

1SFA896111R7000 ABB
ABB

1SFA896111R7000 ABB

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85371091

Popular Downloads

Data Sheet, Technical Information:
Instructions and Manuals:
Instructions and Manuals (Part 3):
EPLAN Data:
Wiring Diagram:

Dimensions

Product Net Width:
153 mm
Product Net Height:
187 mm
Product Net Depth / Length:
54 mm
Product Net Weight:
1 kg

Technical

Rated Operational Voltage:
208 ... 600 V AC
Rated Control Supply Voltage (Us):
100 ... 240 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power - In-Line Connection (Pe):
(230 V) 11 kW
(400 V) 22 kW
(500 V) 30 kW
(230 V) 11 kW
(400 V) 22 kW
(500 V) 30 kW
Rated Operational Current - In-Line Connection (Ie):
45 A
Service Factor Percentage:
100 %
Overload Protection:
Recommended MS450 36 ... 45
Integrated Electronic Overload:
No
Starting Capacity at Maximum Rated Current Ie:
4xIe for 6s
Ramp Time:
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
0 ... 20 second [unit of time]
1 ... 10 second [unit of time]
Initial Voltage During Start:
40 ... 70 %
Step Down Voltage Special Ramp:
100 ... 60 %
Current Limit Function:
No
Switch for Inside Delta Connection:
No
Run Signal Relay:
Yes
By-pass Signal Relay:
Yes
Fault Signal Relay:
No
Overload Signal Relay:
No
Signal Indication Completed Start Ramp (LED):
Green
Signal Indication Ready to Start/Standby ON (LED):
Green
Signal Indication Running R (LED):
Green
Signal Indication Ramping Up/Down (LED):
Green
Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time:
10
Communication:
FiledBusPlug(Optional)
Degree of Protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
Terminal Type:
Screw Terminals
Connecting Capacity Main Circuit:
Rigid 1x 6 ... 35 mm²
Rigid 2 x 6 ... 16 mm²
Rigid 1x 6 ... 35 mm²
Rigid 2 x 6 ... 16 mm²
Connecting Capacity Control Circuit:
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1 x 0.75 ... 2.5 mm²
Rigid 2 x 0.75 ... 1.5 mm²
1 x 0.75 ... 2.5 mm²
2 x 0.75 ... 2.5 mm²
Rigid 1 x 0.75 ... 2.5 mm²
Rigid 2 x 0.75 ... 1.5 mm²
Connecting Capacity Supply Circuit:
Rigid 1 x 0.75 ... 2.5
Tightening Torque:
Control Circuit 0.6 N·m
Main Circuit 4 N·m
Supply Circuit 0.6 N·m
Control Circuit 0.6 N·m
Main Circuit 4 N·m
Supply Circuit 0.6 N·m
Product Main Type:
PSR45
Function:
Soft start with voltage ramp
Soft stop with voltage ramp
Soft start with voltage ramp
Soft stop with voltage ramp

Technical UL/CSA

Horsepower Rating UL/CSA:
(200 ... 208 V AC) Three Phase 15 Hp
(220 ... 240 V AC) Three Phase 15 Hp
(440 ... 480 V AC) Three Phase 30 Hp
(550 ... 600 V AC) Three Phase 40 Hp
(200 ... 208 V AC) Three Phase 15 Hp
(220 ... 240 V AC) Three Phase 15 Hp
(440 ... 480 V AC) Three Phase 30 Hp
(550 ... 600 V AC) Three Phase 40 Hp
Maximum Operating Voltage UL/CSA:
Main Circuit 600 V
Tightening Torque UL/CSA:
Control Circuit 5.3 in·lb
Main Circuit 35.4
Supply Circuit 5.3 in·lb
Control Circuit 5.3 in·lb
Main Circuit 35.4
Supply Circuit 5.3 in·lb

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -40 ... +70 °C
Operation -25 ... +60 °C
Storage -40 ... +70 °C

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Container Information

Package Level 1 Width:
163 mm
Package Level 1 Depth / Length:
56 mm
Package Level 1 Height:
217 mm
Package Level 1 Gross Weight:
1.1 kg
Package Level 1 EAN:
7320500338346
Package Level 1 Units:
box 1 piece

External Classifications and Standards

Object Classification Code:
Q
ETIM 7:
EC000640 - Soft starter
ETIM 8:
EC000640 - Soft starter
ETIM 9:
EC000640 - Soft starter
eClass:
V11.0 : 27370907
UNSPSC:
39121521
IDEA Granular Category Code (IGCC):
4740 >> Soft starter
€247,95
1-year warranty
FREE WORDWIDE SHIPPING
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
Condition:
€247,95
€0,00
€0,00
Need More?
