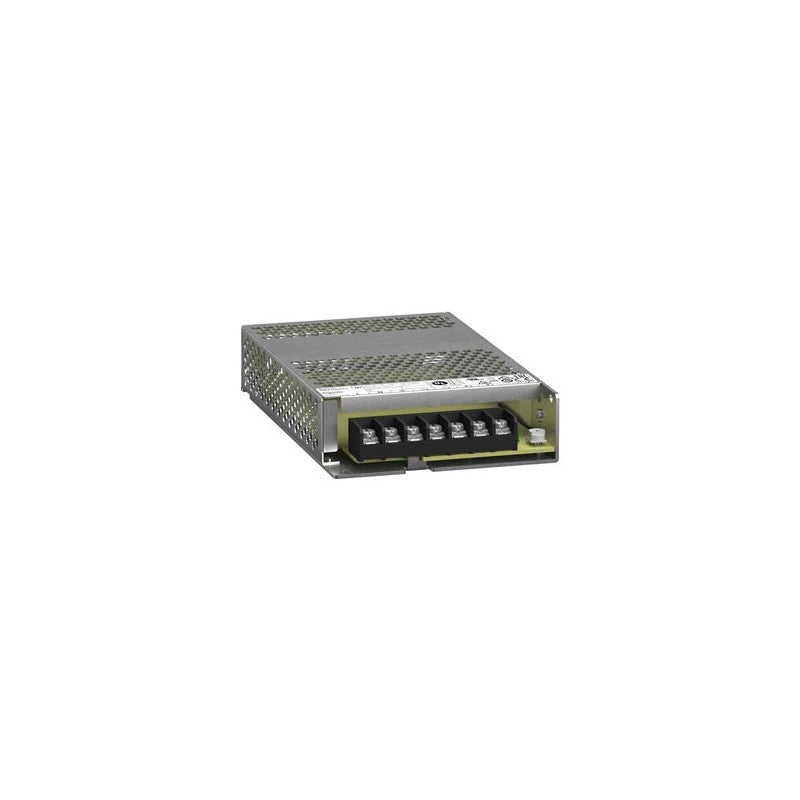

This Modicon ABLP regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 120V AC or 200 to 240V AC, a rated output current of 6.2A at 24V DC and a rated power of 150W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It provides a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected It has LED diagnostics indicator available in the front for troubleshooting instantly. Its width is 159mm, its height is 30mm, its depth is 97mm. It weighs 0.360kg. It is certified with CB-Scheme, cULus Listed, cURus recognized, RCM and EAC. It is a power supply for commercial use, panel mount; It is compatible with ABLPA01 mounting plate. It installs on panel on side or on base with mounting plate fixing by screw. ABLP power supplies bring energy to your automated systems. ABLP power supplies are designed for simple and repetitive machines, dedicated power supplies are particularly quality/price competitive due to their simplicity and compactness. The main applications to use Modicon ABLP power supply are lifts, display panels, escalators, carwash, foodstuff ovens, etc.
Main
| Characteristic | Value(s) |
|---|---|
| Range of Product | Modicon Power Supply |
| Product or Component Type | Power supply |
| Power supply type | Regulated switch mode |
| Variant option | Panel mount |
| Enclosure Material | Aluminum |
| Nominal input voltage | 100...120 V AC single phase 200...240 V AC single phase |
| Kw Rating | 150 W |
| Output voltage | 24 V DC |
| Power supply output current | 6.25 A |
Complementary
| Characteristic | Value(s) |
|---|---|
| Efficiency at full load | 90...132 V AC 170...264 V AC |
| Nominal network frequency | 50â¦60 Hz |
| Network system compatibility | TN TT IT |
| Maximum leakage current | 1 mA 240 V AC |
| Input protection type | Integrated fuse (not interchangeable) 4 A |
| Inrush current | 35 A 115 V 70 A 230 V |
| Power factor | 0.55 at 115 V AC 0.45 at 230 V AC |
| Efficiency | 88.8 % 230 V AC |
| Output voltage adjustment | 21.6...26.4 V |
| Power dissipation in W | 29 W |
| Current consumption | < 3.2 A 115 V AC < 1.9 A 230 V AC |
| Turn-on time | < 500 ms |
| Holding time | > 20 ms 115 V AC > 40 ms 230 V AC |
| Startup with capacitive loads | 7000 µF |
| Residual ripple | < 170 mV |
| Meantime between failure [MTBF] | 700000 h at 77 °F (25 °C), full load conforming to SR 332 |
| Output protection type | Against overload and short-circuits, protection technology: automatic reset Against over temperature, protection technology: manual reset Against overvoltage, protection technology: manual reset |
| Connections - terminals | Screw connection 0.75...2.5 mm², AWG 18...AWG 14) without wire end ferrule Screw connection 0.75...1.5 mm², AWG 18...AWG 16) with wire end ferrule |
| Line and load regulation | < 0.5 % network 0 to 100 % load at 77 °F (25 °C) < 1 % network full voltage range in line at 77 °F (25 °C) |
| Status LED | 1 LED (Green) output voltage |
| Depth | 6.3 in (159 mm) |
| Height | 1.2 in (30 mm) |
| Width | 3.8 in (97 mm) |
| Product Weight | 0.79 lb(US) (0.36 kg) |
| Output coupling | Parallel Serial |
| Mounting support | Top hat type TH35-15 rail IEC 60715 Top hat type TH35-7.5 rail IEC 60715 Double-profile DIN rail panel mounting |
| Supply | SELV IEC 60950-1 SELV IEC 60204-1 SELV IEC 60364-4-41 |
| Dielectric strength | 3750 V AC with input to output |
| Service life | 10 year(s) |
| Overvoltage category | II |
