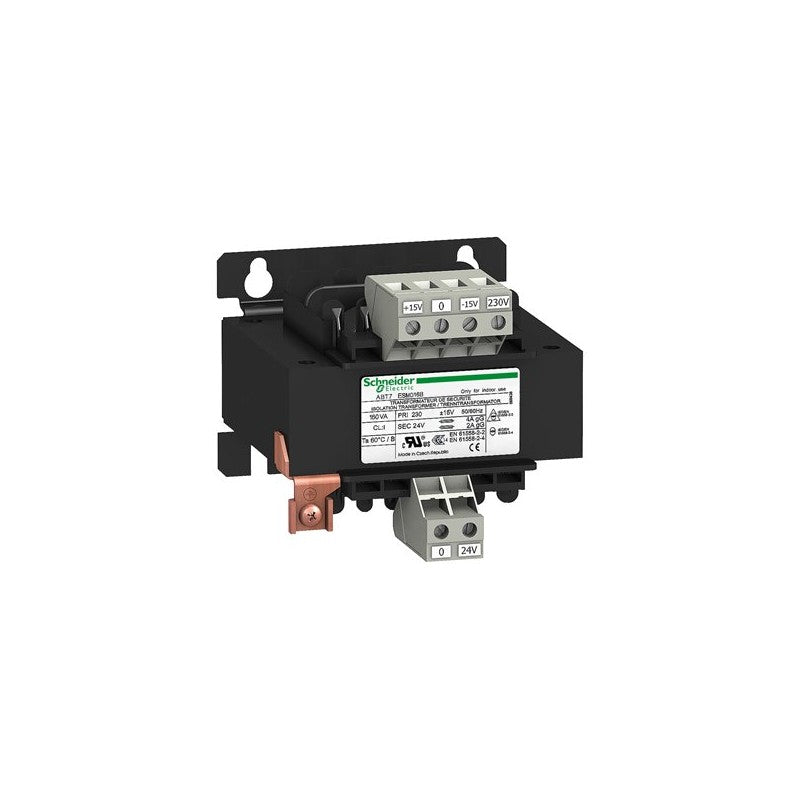

This ABT7 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V AC, a rated output voltage of 24V AC and a rated power of 250VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining motor control centers (MCC). It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors.
Main
| Characteristic | Value(s) |
|---|---|
| Range of product | Modicon Transformer Economic |
| Product or component type | Safety and isolation transformer |
| Rated power in VA | 250 VA |
| Input voltage | 230 V AC phase to phase, terminal(s): L1-L2 230 V AC single phase, terminal(s): N-L1 |
| Output voltage | 24 V AC |
| Secondary winding | Single |
| Protective cover | Without |
| Ambient air temperature for operation | -20â¦40 °C |
Complementary
| Characteristic | Value(s) |
|---|---|
| Input voltage limits | 207...253 V |
| Network frequency limits | 47â¦63 Hz |
| Input voltage tolerance | +/- 15 V |
| Efficiency | 89 % |
| Power dissipation in W | 30.9 W |
| Voltage variation at nominal load | 5.04 % at 230 V |
| Output sustained overvoltage | 0,063 (no load, hot state) |
| Maximum voltage drop at rated load | 6.25 % |
| No load losses | 12.3 W |
| Short-circuit voltage | 0,083 |
| Output protection type | Against overload, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against overvoltage, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection Against short-circuits, protection technology: with additional protection fuses or circuit-breakers in Selection of Protection |
| Connections - terminals | For input connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11 For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11 For output connection: screw type terminals, connection capacity: 2 x 2.5...2 x 4 mm² AWG 14...AWG 11 |
| Marking | CE |
| Fixing mode | By 4 screws diameter: 5 mm on vertical panel, operating position: horizontal By 4 screws diameter: 5 mm on vertical panel, operating position: vertical By 4 screws diameter: 5 mm on horizontal panel with derating to 90 % |
| Operating altitude | 3000 m |
| Electrical insulation class | Class B |
| Width | 97.0 mm |
| Height | 105.0 mm |
| Depth | 105.0 mm |
| Product weight | 3.54 kg |
