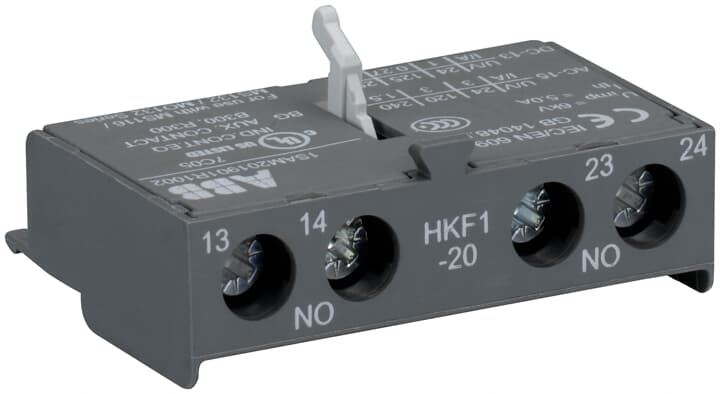

1SAM201901R1002 ABB - HKF1-20

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080

Popular Downloads

Instructions and Manuals:

Dimensions

Product Net Width:
45 mm
Product Net Height:
12.5 mm
Product Net Depth / Length:
26.5 mm
Product Net Weight:
0.015 kg

Technical

Rated Operational Voltage:
250 V
Rated Frequency (f):
Auxiliary Circuit DC
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Auxiliary Circuit DC
Auxiliary Circuit 50 Hz
Auxiliary Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):
Auxiliary Circuit 6 kV
Rated Insulation Voltage (Ui):
250 V
Number of Auxiliary Contacts NC:
0
Number of Auxiliary Contacts NO:
2
Degree of Protection:
IP20
Electrical Durability:
100000 cycle
Mechanical Durability:
Nr. Operations 100000 cycle
Terminal Type:
Screw Terminals
Connecting Capacity Auxiliary Circuit:
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1.0 ... 2.5 mm²
Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²
Flexible 1/2x 0.75 ... 1.5 mm²
Rigid 1/2x 1.0 ... 2.5 mm²
Tightening Torque:
Auxiliary Circuit 0.8 ... 1.2 N·m
Wire Stripping Length:
Auxiliary Circuit 8 mm
Recommended Screw Driver:
M3
Pozidriv 2
M3
Pozidriv 2
Mounting Position:
1 ... 6

Technical UL/CSA

Maximum Operating Voltage UL/CSA:
Main Circuit 250 V AC
Connecting Capacity Auxiliary Circuit UL/CSA:
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Flexible 1/2x 16-14 AWG
Stranded 1/2x 16-14 AWG
Tightening Torque UL/CSA:
Auxiliary Circuit 7 in·lb
Contact Rating UL/CSA:
B300
R300
B300
R300

Environmental

Ambient Air Temperature:
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Operation -25 ... +60 °C
Storage -50 ... +80 °C
Resistance to Shock acc. to IEC 60068-2-27:
11 ms Pulse 25g
Resistance to Vibrations:
5g 3 ... 150 Hz

Material Compliance

Conflict Minerals Reporting Template (CMRT):
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B:
Business To Business
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)

Certificates and Declarations

BV Certificate:
cUL Certificate:
DNV Certificate:
UL Certificate:

Container Information

Package Level 1 Units:
box 10 piece
Package Level 1 Width:
148 mm
Package Level 1 Depth / Length:
36 mm
Package Level 1 Height:
50 mm
Package Level 1 Gross Weight:
0.195 kg
Package Level 1 EAN:
4013614481420
Package Level 2 Units:
500 piece
Package Level 2 Width:
280 mm
Package Level 2 Depth / Length:
395 mm
Package Level 2 Height:
210 mm
Package Level 2 Gross Weight:
10.125 kg
Package Level 2 EAN:
4013614522734

External Classifications and Standards

Object Classification Code:
Q
ETIM 9:
EC000041 - Auxiliary contact block
ETIM 10:
EC000041 - Auxiliary contact block
eClass:
V11.0 : 27371302
UNSPSC:
39121522
IDEA Granular Category Code (IGCC):
4743 >> Auxiliary contact block
E-Number (Finland):
3705898
E-Number (Norway):
4364493

Sale price$84.78
1-year warranty
FREE WORDWIDE SHIPPING
Est. delivery between and
Estimated delivery dates are estimates only. Int'l customers allow a few more days. For more precise delivery estimates, please contact us at support@plc-direct.com. Contact us in advance for expedited shipping options.
