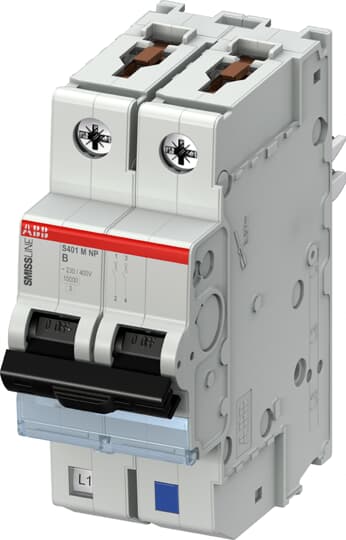

2CCS571001R0205 ABB - S401M-B20
ABB

2CCS571001R0205 ABB - S401M-B20

ABB EcoSolutions

ABB EcoSolutions:
Yes
Recyclability Rate of the Product acc. to EN45555:
Design for Closing Resource Loops - Standard EN45555 - 92.73 %
ABB Site Meeting Group Waste To Landfill Target:
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging (wt. %):
Recycled Cardboard - 18.12 %
Recycled Cardboard - 67.66 %
Chemically Recycled Polymer - 0 %
Recycled Cardboard - 18.12 %
Recycled Cardboard - 67.66 %
Chemically Recycled Polymer - 0 %
Extended Product Lifetime:
Product Durability
End Of Life Disassembling Instructions:
Environmental Product Declaration - EPD:

Technical

Rated Operational Current (Ie):
20 A
Power Supply Connection:
Arbitrary
Contact Position Indication:
Red ON / Green OFF
Energy Limiting Class:
3
Electrical Endurance:
10000 cycle
Mechanical Endurance:
10000 cycle
Number of Protected Poles:
1
Number of Poles:
1P
Tightening Torque:
2.8 N·m
Release Type:
B
Screw Terminal Type:
Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking:
I / O
Recommended Screw Driver:
Pozidriv 2
Accessories Available:
Yes
Connecting Capacity:
Flexible 0.75 … 25 mm²
Rigid 0.75 … 35 mm²
Flexible 0.75 … 25 mm²
Rigid 0.75 … 35 mm²
Terminal Type:
Screw Terminals

Electrical

Tripping Characteristic:
B
Rated Operational Voltage:
acc. to IEC 60898-1 230 V
Operational Voltage:
Minimum 12 V AC
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp):
4 kV
Input Voltage Type:
AC
Rated Current (In):
20 A
Rated Short-Circuit Capacity:
(230 V) 10 kA
(400 V) 10 kA
(230 V) 10 kA
(400 V) 10 kA
Frequency (f):
50 ... 60 Hz
Rated Frequency (f):
50 ... 60 Hz
Power Loss:
2 W
Overvoltage Category:
III

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20210407
REACH Information:
True - contains substances > 0.1 mass percentage
REACH Date:
20230417
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Ambient Air Temperature:
Operation -25 … 60 °C
Reference Ambient Air Temperature:
30 °C
Degree of Protection:
IP20
Pollution Degree:
3
Resistance to Vibrations:
1 mm 2 … 13.2 Hz
Environmental Information:

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
18 mm
Product Net Height:
91 mm
Product Net Depth / Length:
82 mm
Product Net Weight:
110 g
Built-In Depth (t2):
75 mm

Engineering

EPLAN Data:

Ordering

Package Level 1 Units:
carton 10 piece
Package Level 1 Gross Weight:
1165 g
E-Number (Norway):
1623210
E-Number (Switzerland):
809020807

Certificates and Declarations

Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Position:
Any

Popular Downloads

Data Sheet, Technical Information:

External Classifications and Standards

ETIM 9:
EC000042 - Miniature circuit breaker (MCB)
ETIM 10:
EC000042 - Miniature circuit breaker (MCB)
eClass:
V11.0 : 27141901
Object Classification Code:
FC
Standards:
IEC/EN 60898-1
