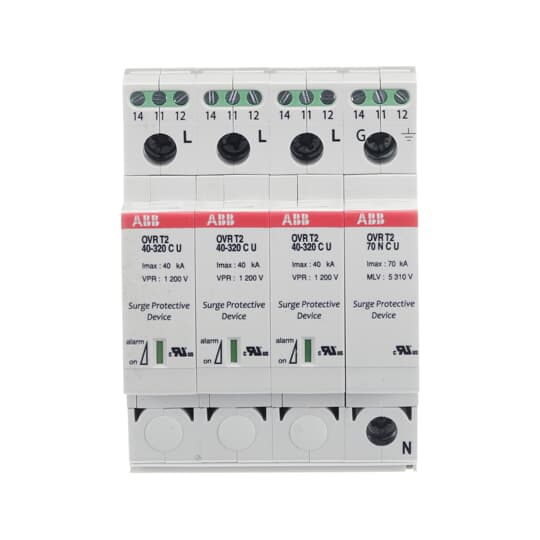

2CTB802346R2500 ABB - OVR T2 3N 40-320 P TS U
ABB

2CTB802346R2500 ABB - OVR T2 3N 40-320 P TS U

Technical

Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
277 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 320 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc:
100 kA
Arrester Class:
II
Number of Protected Poles:
4
Number of Auxiliary Contacts NC:
4
Number of Auxiliary Contacts NO:
4
Number of Poles:
4P
Number of Conductors:
4
Position of Neutral Terminals:
Right
Transmission Standard:
Optic
Version:
Plug-in
Options Provided:
Residential, commercial building.
Auxiliary Circuit Load:
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
4 modular spacing

Electrical

Short-Circuit Current Rating (SCCR):
200 kA
Rated Voltage (Ur):
277 V AC
Voltage Protection Level ( Up):
1.2 kV
(L-N) 1.2 kV
(N-PE) 1.2 kV
1.2 kV
(L-N) 1.2 kV
(N-PE) 1.2 kV

Technical UL/CSA

Maximum Continuous Operating Voltage UL/CSA (MCOV):
(L-PE) 320 V
(L-L) 554 V
(L-N) 320 V
(N-PE) 320 V
(L-PE) 320 V
(L-L) 554 V
(L-N) 320 V
(N-PE) 320 V
Maximum Operating Voltage UL/CSA:
320 V
Type of Low Voltage Distribution System UL/CSA:
Wye

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20220610
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20250225
Conflict Minerals Reporting Template (CMRT):
SCIP:
21369036-5835-4b17-8827-a831f2b9204c Bulgaria
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
4
Product Net Width:
71.2 mm
Product Net Height:
98.5 mm
Product Net Depth / Length:
64.8 mm
Product Net Weight:
0.48 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
540 g

Certificates and Declarations

Declaration:
Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
UNSPSC:
39121610
eClass:
V11.0 : 27130805
IDEA Granular Category Code (IGCC):
4906 >> Surge suppressers
Object Classification Code:
141DDC
Standards:
UL 1449 Ed3
Description
Warranty
Shipping and Return

Technical

Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
277 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 320 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Nominal (8 / 20 µs) 20 kA
I (max, 8 / 20 µs) 40 kA
Short Circuit Withstand Icc:
100 kA
Arrester Class:
II
Number of Protected Poles:
4
Number of Auxiliary Contacts NC:
4
Number of Auxiliary Contacts NO:
4
Number of Poles:
4P
Number of Conductors:
4
Position of Neutral Terminals:
Right
Transmission Standard:
Optic
Version:
Plug-in
Options Provided:
Residential, commercial building.
Auxiliary Circuit Load:
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Minimum 12Vdc - 10mA
Maximum 250Vac - 1A
Preventive Maintenance Feature:
No
Status Indicator:
Yes
Fuse Size:
4 modular spacing

Electrical

Short-Circuit Current Rating (SCCR):
200 kA
Rated Voltage (Ur):
277 V AC
Voltage Protection Level ( Up):
1.2 kV
(L-N) 1.2 kV
(N-PE) 1.2 kV
1.2 kV
(L-N) 1.2 kV
(N-PE) 1.2 kV

Technical UL/CSA

Maximum Continuous Operating Voltage UL/CSA (MCOV):
(L-PE) 320 V
(L-L) 554 V
(L-N) 320 V
(N-PE) 320 V
(L-PE) 320 V
(L-L) 554 V
(L-N) 320 V
(N-PE) 320 V
Maximum Operating Voltage UL/CSA:
320 V
Type of Low Voltage Distribution System UL/CSA:
Wye

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU
RoHS Date:
20220610
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20250225
Conflict Minerals Reporting Template (CMRT):
SCIP:
21369036-5835-4b17-8827-a831f2b9204c Bulgaria
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
4
Product Net Width:
71.2 mm
Product Net Height:
98.5 mm
Product Net Depth / Length:
64.8 mm
Product Net Weight:
0.48 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
540 g

Certificates and Declarations

Declaration:
Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
UNSPSC:
39121610
eClass:
V11.0 : 27130805
IDEA Granular Category Code (IGCC):
4906 >> Surge suppressers
Object Classification Code:
141DDC
Standards:
UL 1449 Ed3
