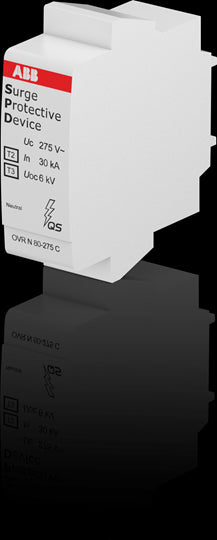

2CTB803876R0000 ABB - OVR T2-T3 N 80-275 C QS
ABB

2CTB803876R0000 ABB - OVR T2-T3 N 80-275 C QS

Technical

Type of Low Voltage Distribution System:
TT
TN-S
TT
TN-S
Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
230 / 400 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 275 V
Temporary Overvoltage Test Value (UT):
1200 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 30 kA
I (max, 8 / 20 µs) 80 kA
Nominal (8 / 20 µs) 30 kA
I (max, 8 / 20 µs) 80 kA
Impulse Current:
I (imp, 10 / 350 µs) 6.25 kA
Short Circuit Withstand Icc:
100 A
Arrester Class:
II
Number of Protected Poles:
1
Number of Poles:
1P
Number of Conductors:
1
Transmission Standard:
Optic
Version:
Plug-in
Product Type:
QS
Options Provided:
Replacement Cartridge
Preventive Maintenance Feature:
No
Status Indicator:
No
Fuse Size:
2 modular spacing

Electrical

Rated Voltage (Ur):
230 V AC
Voltage Protection Level ( Up):
1.4 kV
(L-N) 1.4 kV
(N-PE) 1.4 kV
1.4 kV
(L-N) 1.4 kV
(N-PE) 1.4 kV

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230707
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20231212
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
17.6 mm
Product Net Height:
57 mm
Product Net Depth / Length:
55.6 mm
Product Net Weight:
0.12 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.13 kg
E-Number (Finland):
3211206

Certificates and Declarations

CB Certificate:
CQC Certificate:
Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
eClass:
V11.0 : 27130805
Object Classification Code:
141ECC
Standards:
IEC 61643-11 / EN 61643-11
Description
Warranty
Shipping and Return

Technical

Type of Low Voltage Distribution System:
TT
TN-S
TT
TN-S
Suitable For:
To protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo):
230 / 400 V
Maximum Continuous Operating Voltage (Uc):
(L-PE) 275 V
Temporary Overvoltage Test Value (UT):
1200 V
Rated Service Short-Circuit Breaking Capacity (Ics):
100 kA
Discharge Current:
Nominal (8 / 20 µs) 30 kA
I (max, 8 / 20 µs) 80 kA
Nominal (8 / 20 µs) 30 kA
I (max, 8 / 20 µs) 80 kA
Impulse Current:
I (imp, 10 / 350 µs) 6.25 kA
Short Circuit Withstand Icc:
100 A
Arrester Class:
II
Number of Protected Poles:
1
Number of Poles:
1P
Number of Conductors:
1
Transmission Standard:
Optic
Version:
Plug-in
Product Type:
QS
Options Provided:
Replacement Cartridge
Preventive Maintenance Feature:
No
Status Indicator:
No
Fuse Size:
2 modular spacing

Electrical

Rated Voltage (Ur):
230 V AC
Voltage Protection Level ( Up):
1.4 kV
(L-N) 1.4 kV
(N-PE) 1.4 kV
1.4 kV
(L-N) 1.4 kV
(N-PE) 1.4 kV

Material Compliance

RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date:
20230707
REACH Information:
False - does not contain substances > 0.1 mass percentage
REACH Date:
20231212
Conflict Minerals Reporting Template (CMRT):
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B:
Business To Business

Environmental

Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 5000

Dimensions

Width in Number of Modular Spacings:
1
Product Net Width:
17.6 mm
Product Net Height:
57 mm
Product Net Depth / Length:
55.6 mm
Product Net Weight:
0.12 kg

Ordering

Package Level 1 Units:
box 1 piece
Package Level 1 Gross Weight:
0.13 kg
E-Number (Finland):
3211206

Certificates and Declarations

CB Certificate:
CQC Certificate:
Declaration of Conformity - CE:

Installation

Instructions and Manuals:
Mounting Type:
DIN-Rail

External Classifications and Standards

ETIM 9:
EC000941 - Surge protection device for power supply systems
ETIM 10:
EC000941 - Surge protection device for power supply systems
eClass:
V11.0 : 27130805
Object Classification Code:
141ECC
Standards:
IEC 61643-11 / EN 61643-11
